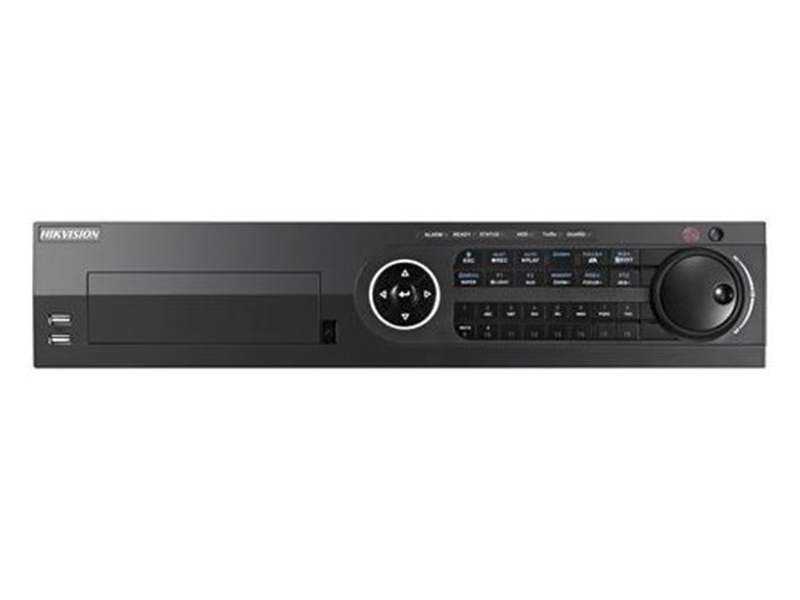

Haikon DS 7308HQHI F4 N Turbo HD DVR Kayıt Cihazı

Özellikler

H.264 ,H.264+& Dual-stream video compression
Support HD-TVI, IPC,AHD and analog cameras with adaptive access
Support Cloud storage(One Drive, Google Drive or Drop Box)
Up to 3 MP resolution
VGA output at up to 1920×1080P resolution,HDMI output at up to 4K(3840x2160) resolution
Long transmission distance over coax cable
Up to 8-ch synchronous playback at 1080p resolution
playback at up to 256X speed.
Support POS functions.

Teknik Özellikler

Video/Audio Input
Audio Input:	4-ch
Video Compression:	H.264,H.264+
Analog and HD-TVI video input:	8-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:	Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz
	Note: The 3 MP signal input is only available for the first channel of DS-7304HQHI-F4/N, the first 2 channels of DS-7308HQHI-F4/N, and the first 4 channels of DS-7316HQHI-F4/N.
	Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
	support CVBS input
Video Input Interface:	BNC (1.0 Vp-p, 75Ω)
Audio Compression:	G.711u
Audio Input Interface:	4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio:	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
CVBS Output:	1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
Recording resolution:	When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
	When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF
Frame Rate:	Main stream:
	When 1080p Lite mode not enabled:
	For 1080p stream access: 1080p/720p@12fps;VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	When 1080p Lite mode enabled:
	1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	Main stream:
	When 1080p Lite mode not enabled:
	For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps
	For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	When 1080p Lite mode enabled:
	3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:	32 Kbps-6 Mbps
Stream Type:	Video/Video&Audio
Two-way Audio:	1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:	1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:	64kbps
Dual Stream:	Support
Playback Resolution:	3 MP/1080p/720p/VGA/WD1/4CIF/CIF
Synchronous Playback:	8-ch
Network management
Remote connections:	128
Network protocols:	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF
Hard Disk Driver
Interface Type:	4 SATA Interfaces
Capacity:	Up to 6 TB capacity for each disk
External Interface
Network Interface:	1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface:	2 USB 2.0 Interface on the front panel
