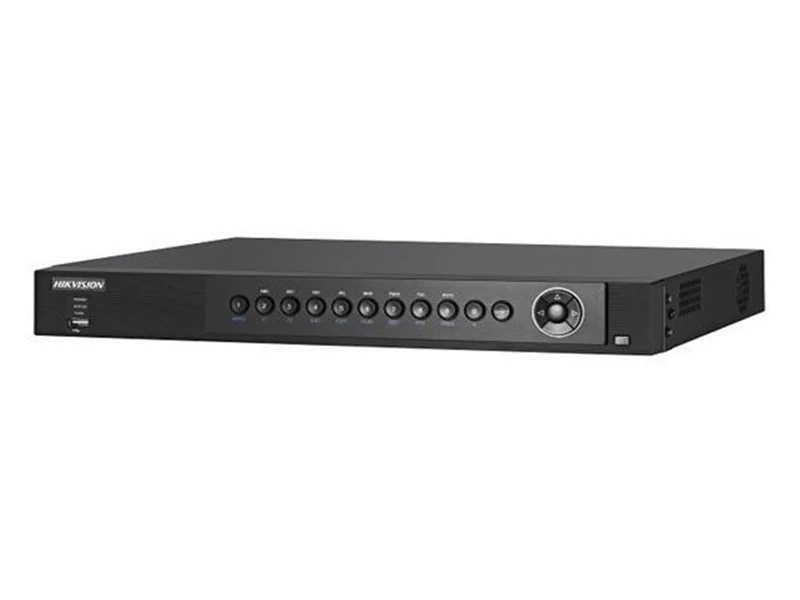

Haikon DS 7608HUHI F2 N Turbo HD DVR Kayıt Cihazı

Özellikler

H264 ,H.264+& Dual-stream video compression
Support HD-TVI, IPC,AHD and analog cameras with adaptive access
Support Cloud storage(One Drive, Google Drive or Drop Box)
HDMI and VGA output can be configured simultaneous or independent. If simultaneous, up to 4K (3840 × 2160) resolution is supported; if independent, up to 1920 × 1080 resolution for VGA output and up to 4K (3840 × 2160) resolution for HDMI output
Long transmission distance over coax cable
8-ch synchronous playback at 3MP resolution
playback at up to 256X speed.

Teknik Özellikler

Video/Audio Input
Audio Input:	4-ch
Video Compression:	H.264,H.264+
Analog and HD-TVI video input:	8-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:	Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz,
	Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
	Support CVBS input
Video Input Interface:	BNC (1.0 Vp-p, 75Ω)
Audio Compression:	G.711u
Audio Input Interface:	4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio:	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
CVBS Output:	1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
HDMI/VGA Output:	HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024 ×768/60Hz
	VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
Recording resolution:	3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate:	Main stream:
	3 MP@15fps;
	1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
	Sub-stream:
	WD1/4CIF@12fps;
	CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video Bit Rate:	32 Kbps-10 Mbps
Stream Type:	Video/Video&Audio
Two-way Audio:	1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output:	1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:	64kbps
Dual Stream:	Support
Playback Resolution:	3 MP/1080p/720p/VGA/WD1/4CIF/CIF
Synchronous Playback:	8-ch
Network management
Remote connections:	128
Network protocols:	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF
Hard Disk Driver
Interface Type:	2 SATA Interfaces
Capacity:	Up to 6 TB capacity for each disk
External Interface
Network Interface:	1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface:	1 USB 2.0 Interface & 1 USB 3.0 Interface
Serial Interface:	1; standard RS-485 serial interface, half-duplex
Alarm Input:	8-ch
Alarm Output:	4-ch
General
Power Supply:	12V DC
Consumption:	≤ 20W(without hard disks)
Working Temperature:	-10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working Humidity:	10% ~ 90%
Chassis:	Standard 1U chassis
Dimensions:	380 × 320 × 48 mm
	(14.9 × 12.6 × 18.9 inch )
Weight:	≤ 2 k g (4.4 lb) g
