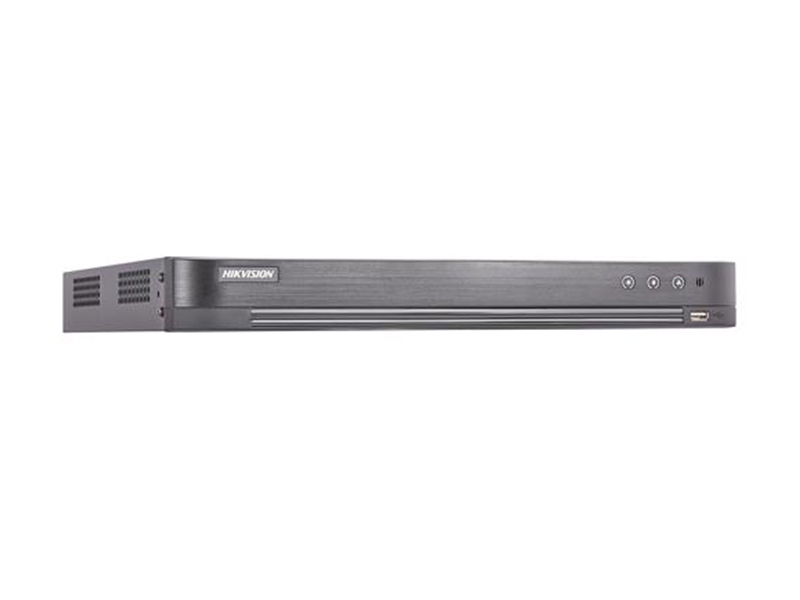

Hikvision DS 7208HTHI K2 Turbo HD DVR Kayıt Cihazı

Özellikler

H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
Connectable to H.265+/H.265/H.264+/H.264 IP cameras
Up to 8 MP resolution for recording
HDMI output at up to 4K (3840 × 2160) resolution
Long distance transmission over UTP and coaxial cable
4/8-ch synchronous playback

Teknik Özellikler

Video/Audio Input
Audio Input	8-ch
Video Compression	H.265+/H.265/H.264+/H.264
Analog and HD-TVI video input	8-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types	Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
	Support AHD input: 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30
	Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
	Support CVBS input
Video Input Interface	BNC (1.0 Vp-p, 75Ω)
Audio Compression	G.711u
Audio Input Interface	4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)
Video/Audio Output
CVBS Output	1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
HDMI/VGA Output	1-ch,4K (3840 × 2160)/30Hz,2K(2560 ×1440)/60Hz, 1920 ×1080/60Hz, 1280 ×1024/60 Hz, 1280 ×720/60Hz, 1024 ×768/60 Hz
Recording resolution	8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate	Main stream:
	8 MP@12fps, 5 MP@20fps, 3 MP@18fps
	4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
	Sub-stream:
	WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate	32 Kbps-16384 Kbps
Stream Type	Video/Video&Audio
Two-way Audio	1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Audio Output	1-ch RCA(Linear, 1kΩ)
Audio Bit Rate	64kbps
Dual Stream	Support
Playback Resolution	8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Synchronous Playback	8-ch
Network management
Remote connections	64
Network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF
Hard Disk Driver
Interface Type	2 SATA Interfaces
Capacity	Up to 8 TB capacity for each disk
External Interface
Network Interface	1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Interface	1 USB 2.0 Interface & 1 USB 3.0 Interface
Serial Interface	1; standard RS-485 serial interface, half-duplex
Alarm Input	8-ch
Alarm Output	4-ch
General
Power Supply	12 VDC
Consumption	≤ 20W(without hard disks)
Working Temperature	-10 oC to +55 oC (14 oF to 131 oF)
Working Humidity	10% to 90%
Dimensions	380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight	≤ 2 kg (4.4 lb)
