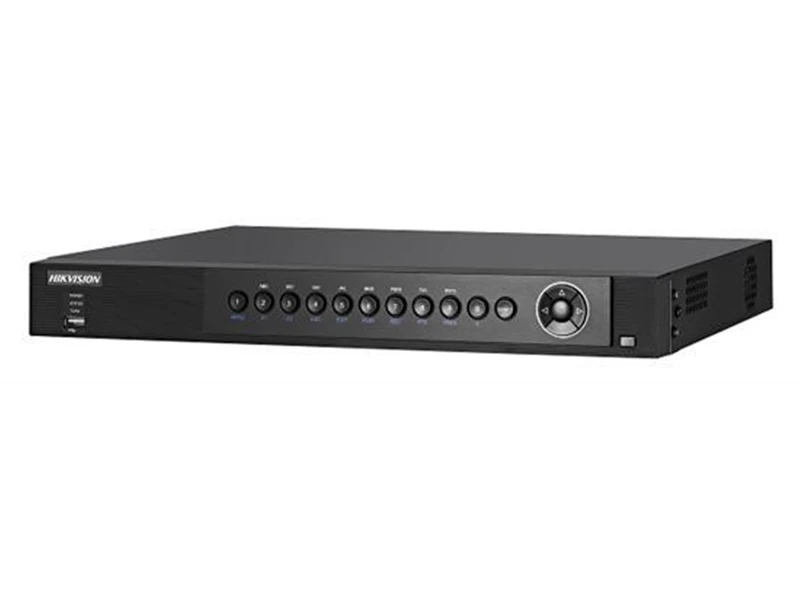

Hikvision DS 7208HUHI F1/N Turbo HD DVR Kayıt Cihazı
Özellikler
- H.264 ,H.264+& Dual-stream video compression
- Support HD-TVI, IPC,AHD and analog cameras with adaptive access
- Support Cloud storage(One Drive, Google Drive or Drop Box)
- HDMI and VGA output at up to 1920×1080P resolution,HDMI output at up to 4K(3840x2160) resolution for
- DS-7208HUHI-F1/N
- Long transmission distance over coax cable
- Up to 4/8-ch synchronous playback at 1080p resolution
- playback at up to 256X speed.
Teknik Özellikler
| Video/Audio Input | |
| Ses girişi | 1-ch |
| Video Sıkıştırma | H.264,H.264+ |
| Analog ve HD-TVI video girişi | 8-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Desteklenen Kameralar | Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz |
| Note: The 3 MP signal input is only available for the first 2 channels of DS-7208HQHI-F2/N, and the first 4 channels of DS-7216HQHI-F2/N. | |
| Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz | |
| support CVBS input | |
| IP Video Input | 2-ch Up to 2MP resolution |
| Video Girişi Arayüzü | BNC (1.0 Vp-p, 75Ω) |
| Ses Sıkıştırma | G.711u |
| Ses Girişi Arayüzü | RCA (2.0 Vp-p, 1 kΩ) |
| Çift Yön Ses | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
| Video/Audio Output | |
| CVBS Çıkışı | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
| HDMI/VGA Çıkışı | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Kayıt Çözünürlüğü | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; |
| When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF | |
| Çerçeve Hızı | Main stream: |
| When 1080p Lite mode not enabled: | |
| For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps | |
| For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| When 1080p Lite mode enabled: | |
| 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| Video Bit Hızı | 32 Kbps-6 Mbps |
| Akış Tipi | Video/Video&Audio |
| Ses Çıkışı | 1-ch RCA(Linear, 1kΩ) |
| Ses Bit Hızı | 64kbps |
| Çift Akış | Support |
| Oynatma Çözünürlüğü | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
| Senkronize yeniden oynatma | 8-ch |
| Ağ yönetim | |
| Uzak Bağlantı | 128 |
| Ağ Protokolleri | TCP/IP, PPPoE, DHCP,Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS,ONVIF |
| Sabit Disk Sürücü | |
| Arayüzü Türü | 2 SATA Interfaces |
| Kapasite | Up to 6 TB capacity for each disk |
| Harici Arayüzü | |
| Ağ Arayüzü | 1; 10M / 100M self-adaptive Ethernet interface |
| USB Arayüzü | 2 USB 2.0 Interfaces |
| Seri bağlantı Arayüzü | 1; standard RS-485 serial interface, half-duplex |
| Genel | |
| Güç Kaynağı | 12V DC |
| Tüketim | ≤ 20W(without hard disks) |
| Çalışma Sıcaklığı | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Çalışma Nem oranı | 10% ~ 90% |
| Kasa | 380mm 1U chassis |
| Boyutlar | 380 × 320 × 45 mm |
| (15.0 × 12.6 × 1.8 inch) | |
| Ağırlık | ≤2 kg(4.4lb) |
Hikvision DS 7208HUHI F1/N Turbo HD DVR Kayıt Cihazı Pdf Dosyası672.12 KB
