Açıklama

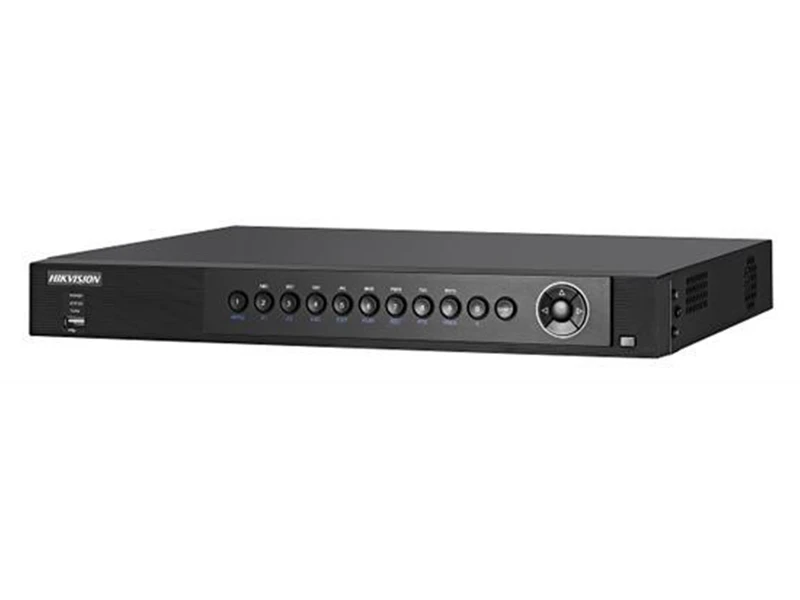

Hikvision DS 7208HUHI F1/S Turbo HD DVR Kayıt Cihazı
Özellikler
- H.264+ & Dual-stream video compression
- Support HD-TVI/analog/AHD/IP camera triple hybrid
- Support both HD-TVI and analog cameras with adaptive access
- Full channel@5MP resolution non real-time recording
- HDMI output at up to 4K while VGA output at up to 1920×1080P resolution
- Long transmission distance over coax cable
- Support up to 4/8-ch synchronous playback
Teknik Özellikler
Video/Audio Input | |
Audio Input | 4-ch |
Video Compression | H.264,H.264+ |
Analog and HD-TVI video input | 8-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
Supported camera types | Support HDTVI input: 5MP,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, |
Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz | |
Support CVBS input | |
Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
Audio Compression | G.711u |
Audio Input Interface | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) |
Video/Audio Output | |
CVBS Output | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
HDMI/VGA Output | HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz |
VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz | |
Recording resolution | Mainstream:5MP/4MP/3Mp/1080p/720p/WD1/4CIF/VGA/CIF |
Sub-stream:WD1/4CIF/CIF/QVGA/QCIF | |
Frame Rate | Main stream: |
5MP@10fps/4MP@15fps/3MP@15fps/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | |
Sub-stream: | |
WD1/4CIF@12fps;CIF/QVGA/QCIF@25fps (P)/30fps (N) | |
Video Bit Rate | 32 Kbps-10 Mbps |
Stream Type | Video/Video&Audio |
Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
Audio Output | 1-ch RCA(Linear, 1kΩ) |
Audio Bit Rate | 64kbps |
Dual Stream | Support |
Playback Resolution | 5MP/4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF |
Synchronous Playback | 8-ch |
Network management | |
Remote connections | 128 |
Network protocols | TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, |
ONVIF | |
Hard Disk Driver | |
Interface Type | 1 SATA Interface |
Capacity | Up to 6 TB capacity for each disk |
External Interface | |
Network Interface | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
USB Interface | 2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel |
Alarm Input | 8-ch |
Alarm Output | 4-ch |
General | |
Power Supply | 12V DC |
Consumption | ≤ 15W(without hard disks) |
Working Temperature | -10 oC ~+55 oC (14 oF ~ 131 oF) |
Working Humidity | 10% to 90% |
Chassis | Standard 1U chassis) |
Dimensions | 315 × 242 × 45 mm |
(12.4 × 9.5 × 1.8 inch) | |
Weight | ≤2kg(4.4lb) |
Hikvision DS 7208HUHI F1/S Turbo HD DVR Kayıt Cihazı Pdf Dosyası678.51 KB
