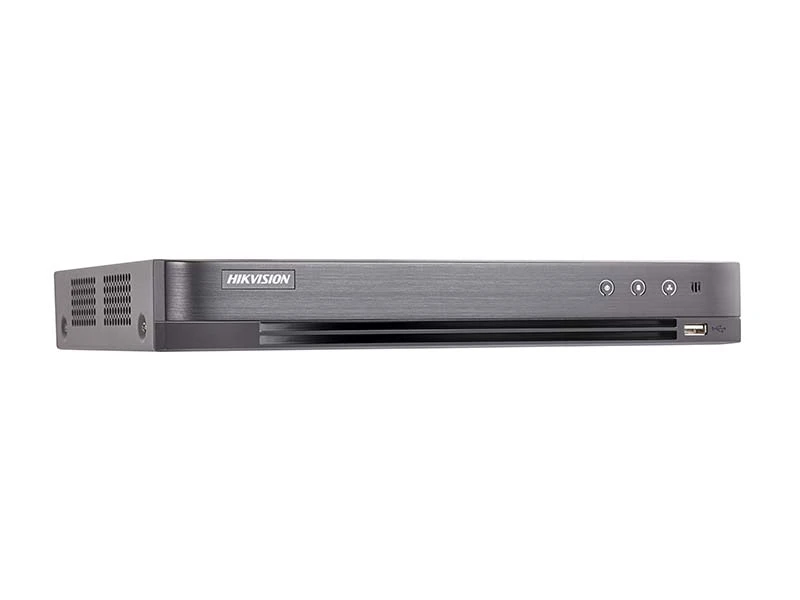

Hikvision DS 7B08HQHI K1 Turbo HD DVR Kayıt Cihazı
Özellikler
- H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- •Connectable to H.265+/H.265/H.264+/H.264 IP cameras
- Up to 3 MP resolution for recording
- HDMI output at up to 4K (3840 × 2160) resolution for DS-7216HQHI-K1
- Long distance transmission over UTP and coaxial cable
- 4/8/16-ch synchronous playback
Teknik Özellikler
Video/Audio Input | |
Ses girişi | 8-ch |
Analog ve HD-TVI video girişi | 8-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
Desteklenen Kameralar | Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, |
Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz | |
Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz | |
Support CVBS input | |
Video Girişi Arayüzü | BNC (1.0 Vp-p, 75Ω) |
Ses Sıkıştırma | G.711u |
Ses Girişi Arayüzü | RCA (2.0 Vp-p, 1 kΩ) |
Çift Yön Ses | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) |
Video/Audio Output | |
CVBS Çıkışı | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
HDMI/VGA Çıkışı | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
Çerçeve Hızı | Main stream: |
When 1080p Lite mode not enabled: | |
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps | |
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
When 1080p Lite mode enabled: | |
3 MP@15fps | |
1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) | |
Sub-stream: | |
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) | |
Video Bit Hızı | 32 Kbps-6 Mbps |
Akış Tipi | Video/Video&Audio |
İki Yönlü ses | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
Ses Çıkışı | 1-ch RCA(Linear, 1kΩ) |
Ses Bit Hızı | 64kbps |
Çift Akış | Support |
Oynatma Çözünürlüğü | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
Senkronize yeniden oynatma | 8-ch |
Ağ yönetim | |
Uzak Bağlantı | 128 |
Ağ Protokolleri | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF |
Sabit Disk Sürücü | |
Arayüzü Türü | 1 SATA Interface |
Kapasite | Up to 6 TB capacity for each disk |
Harici Arayüzü | |
Ağ Arayüzü | 1; 10M / 100M self-adaptive Ethernet interface |
USB Arayüzü | 2 USB 2.0 Interfaces |
Seri bağlantı Arayüzü | 1; standard RS-485 serial interface, half-duplex |
Genel | |
Güç Kaynağı | 12 VDC |
Tüketim | ≤ 7.5W(without hard disks) |
Çalışma Sıcaklığı | -10 ºC to +55 ºC (14 ºF to 131 ºF) |
Çalışma Nem oranı | 10% to 90% |
Boyutlar | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
Ağırlık | ≤ 1.78 kg (3.9 lb) |
Hikvision DS 7B08HQHI K1 Turbo HD DVR Kayıt Cihazı Pdf Dosyası729.53 KB
