Açıklama

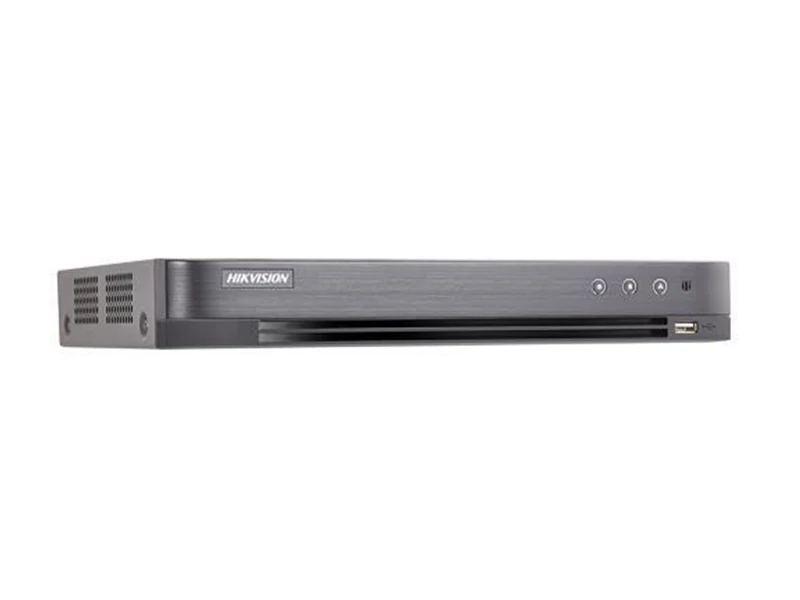

Hikvision DS 7B08HUHI K1 Turbo HD DVR Kayıt Cihazı
Özellikler
- H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- Connectable to H.265+/H.265/H.264+/H.264 IP cameras
- Up to 5 MP resolution for recording
- HDMI output at up to 4K (3840 × 2160) resolution for DS-7B08HUHI-K2
- Long distance transmission over UTP and coaxial cable
- 4/8-ch synchronous playback
Teknik Özellikler
Video/Audio Input | |
Audio Input | 8-ch |
Video Compression | H.265+/H.265/H.264+/H.264 |
Analog and HD-TVI video input | 8-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
Supported camera types | Support HDTVI input: 5MP,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, |
Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz | |
Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz | |
Support CVBS input | |
Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
Audio Compression | G.711u |
Audio Input Interface | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) |
Video/Audio Output | |
CVBS Output | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
HDMI/VGA Output | VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
Recording resolution | 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
Frame Rate | Main stream: |
5 MP@12fps/4 MP@15fps/3 MP@18fps | |
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | |
Sub-stream: | |
WD1/4CIF/CIF@25fps (P)/30fps (N) | |
Video Bit Rate | 32 Kbps-10 Mbps |
Stream Type | Video/Video&Audio |
Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
Audio Output | 1-ch RCA(Linear, 1kΩ) |
Audio Bit Rate | 64kbps |
Dual Stream | Support |
Playback Resolution | 5MP/4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF |
Synchronous Playback | 8-ch |
Network management | |
Remote connections | 128 |
Network protocols | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF |
Hard Disk Driver | |
Interface Type | 1 SATA Interface |
Capacity | Up to 8 TB capacity for each disk |
External Interface | |
Network Interface | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
USB Interface | 1 USB 2.0 Interface & 1 USB 3.0 Interface |
Serial Interface | 1; standard RS-485 serial interface, half-duplex |
General | |
Power Supply | 12 VDC |
Consumption | ≤ 20W(without hard disks) |
Working Temperature | -10 oC to +55 oC (14 oF to 131 oF) |
Working Humidity | 10% to 90% |
Dimensions | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
Weight | ≤ 2 kg (4.4 lb) |
Hikvision DS 7B08HUHI K1 Turbo HD DVR Kayıt Cihazı Pdf Dosyası721.82 KB
