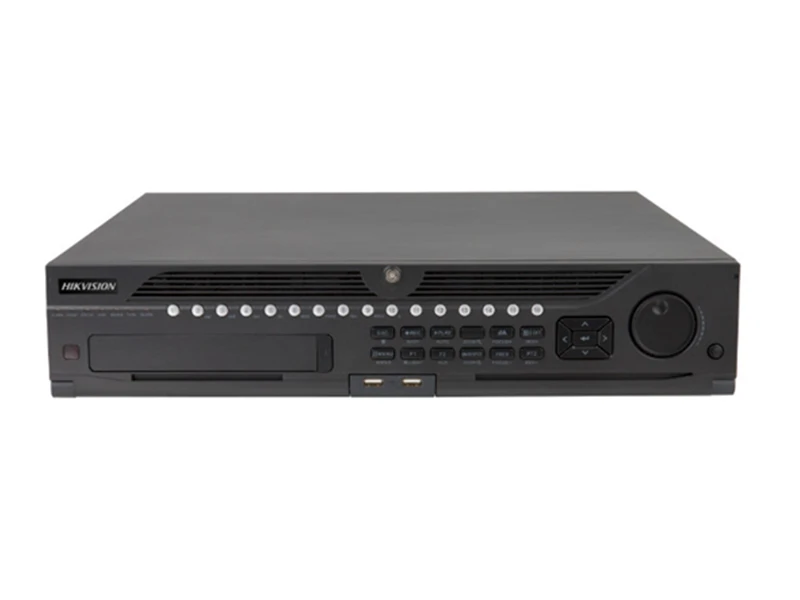

Hikvision DS 9008HUHI K8 Turbo HD DVR Kayıt Cihazı
Özellikler
- H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- Support Cloud storage(One Drive, Google Drive or Drop Box)
- Up to 8MP resolution for recording
- HDMI output at up to 4K (3840 × 2160) resolution
- Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
- 16-ch synchronous playback
- Supports POS triggered recording and POS information overlay
Teknik Özellikler
Video/Audio Input | |
Audio Input | 8-ch |
Video Compression | H.265+/H.265/H.264+/H.264 |
Analog and HD-TVI video input | 8-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
Supported camera types | Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 |
Support AHD input: 5MP,4MP,1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz | |
Support CVI input: 4 MP, 720p25, 720p30, 1080p25, 1080p30 | |
support CVBS input | |
IP Video Input | 10-ch(up to 18ch) Up to 12MP resolution |
Audio Compression | G.711u |
Audio Input Interface | 8-ch RCA (2.0 Vp-p, 1 KΩ) |
Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
Video/Audio Output | |
HDMI2 Output | 1-ch,4K(3840 × 2160)/30Hz,2K(2560 × 1440)/60Hz,1920×1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz |
HDMI/VGA Output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
Recording resolution | 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
Video Loop Output | 8-ch, BNC |
Frame Rate | Main stream: |
8 MP@8fps; 5 MP@12fps; 4 MP@ 15fps; 3 MP@18fps; | |
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | |
Sub-stream: | |
WD1/4CIF/CIF@25fps (P)/30fps (N) | |
Video Bit Rate | 32 Kbps-10 Mbps |
Stream Type | Video/Video&Audio |
Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (independent) |
Audio Output | 2-ch, RCA (Linear, 1 kΩ) |
Dual Stream | Support |
Playback Resolution | 8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF |
Synchronous Playback | 8-ch |
Network management | |
Remote connections | 128 |
Network protocols | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF,SNMP |
Hard Disk Driver | |
Interface Type | 8 SATA Interfaces |
Capacity | Up to 8 TB capacity for each disk |
e-SATA Interface | 1 eSATA interface |
Disk Array | |
Array Type | RAID0, RAID1, RAID5, RAID6,RAID10 |
External Interface | |
USB Interface | 2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel |
Serial Interface | 1 RS-232 serial interface |
1 RS-485 serial interface, full-duplex,1 RS-485 keyboard interface | |
Alarm Input | 16-ch |
Alarm Output | 8-ch |
General | |
Power Supply | 100 to 240 VAC |
Consumption | ≤ 45W(without hard disks) |
Working Temperature | -10 oC to +55 oC (+14 oF to +131 oF) |
Working Humidity | 10% to 90% |
Dimensions | 440 × 470 × 90 mm (17.3 × 18.5 × 3.5 inch) |
Weight | ≤ 10 kg (22.0 lb) |
Hikvision DS 9008HUHI K8 Turbo HD DVR Kayıt Cihazı Pdf Dosyası698.71 KB
