Açıklama

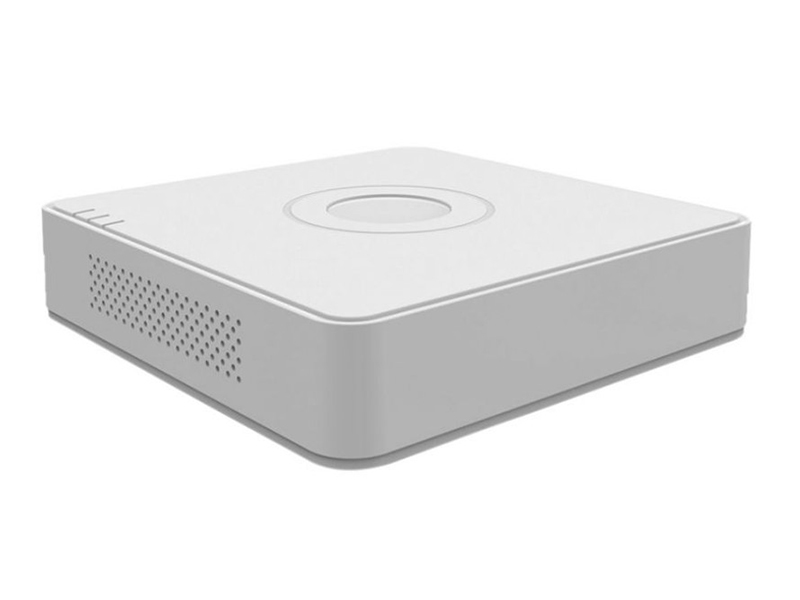

Haikon DS 7116HGHI F1/N HD TVI Kayıt Cihazı
Özellikler
- 16 Kanal H.264+/H.264 HD-TVI Kayıt Cihazı (1080p Lite)
- 1080p Lite@12fps
- 720p@25fps HDTVI (Lite modu aktif)
- 720p@25fps AHD
- CVBS giriş desteği
- 1xSes girişi, Çift Yönlü Ses Desteği
- 1xHDMI (1920x1080)
- 1xVGA (1920x1080)
- Dual-Stream, Network Bağlantısı (10/100Mbps)
- 1xSATA (6TB), 2xUSB2.0
- Normal Analog Kameralarla Uyumlu
Teknik Özellikler
Video compression | H.264+/H.264 |
Analog video input | 16-ch |
BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection | |
Supported HDTVI input | 720p/25Hz, 720p/30Hz |
Supported AHD input | 720p/25Hz, 720p/30Hz |
CVBS input | Support |
Audio compression | G.711u |
Audio input/Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
HDMI/VGA output | 1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Encoding resolution | When 720p stream is connected: 720p/WD1/4CIF/VGA (12fps)/CIF |
When 4CIF stream is connected: WD1/4CIF/VGA/CIF | |
Frame rate | 25fps(P)/30fps(N) |
Video bitrate | 32 Kbps to 4 Mbps |
Audio output | 1-ch, RCA (Linear, 1KΩ) |
Audio bitrate | 64 Kbps |
Dual-stream | Support |
Stream type | Video, Video & Audio |
Synchronous playback | 16-ch |
Remote connections | 128 |
Network protocols | TCP/IP, PPPoE, DHCP,Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
SATA | 1 SATA interface |
Capacity | Up to 6TB capacity for each disk |
Network interface | 1; RJ45 10M/100Mbps self-adaptive Ethernet interface |
USB port | 2 × USB2.0 |
Power supply | 12VDC |
Consumption | ≤ 20W |
Working temperature | -10 ºC to +55 ºC (14 ºF to 131 ºF) |
Working humidity | 10% to 90% |
Dimensions(W × D × H) | 285×210×45 mm (11.2 × 8.3 × 1.8 inch) |
Weight(without hard disks) | ≤ 1.2 kg (2.6 lb) |
Haikon DS 7116HGHI F1/N HD TVI Kayıt Cihazı Pdf Dosyası539.8 KB
