Açıklama

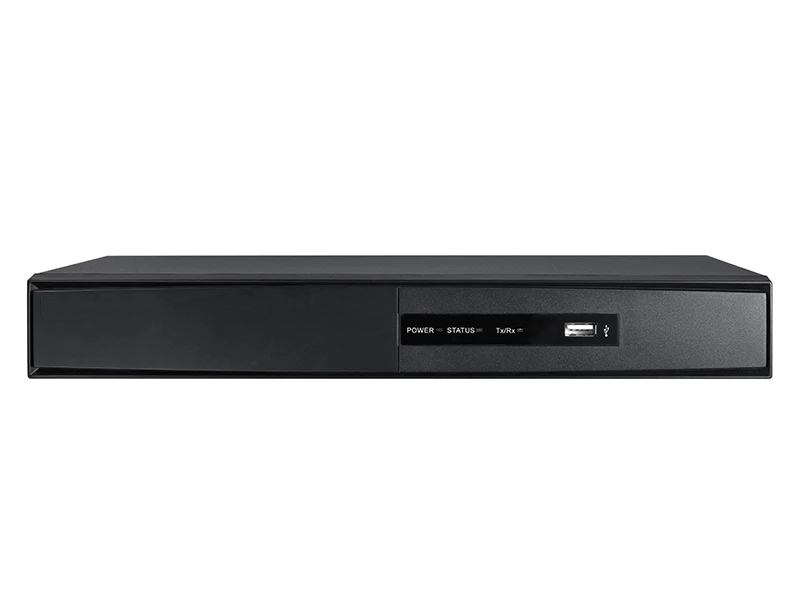

Hikvision DS 7216HGHI E1 HD TVI DVR Kayıt Cihazı
Özellikler
- H.264 & Dual-stream video compression
- Support HD-TVI/analog/IP camera triple hybrid
- Support both HD-TVI and analog cameras with adaptive access
- Full channel@ 720P resolution non real-time recording
- HDMI and VGA output at up to 1920×1080P resolution
- Long transmission distance over coax cable
- Support up to 16-ch synchronous playback
Teknik Özellikler
Video/Audio Input | |
Audio Input: | 1-ch |
Video Compression | H.264 |
Analog and HD-TVI video input | 16-ch BNC interface (1.0Vp-p, 75 Ω) |
Supported camera types | 720P/25, 720P/30, CVBS |
IP Video Input | 2-ch (up to 18-ch) Up to 2MP resolution |
Audio Compression | G.711u |
Audio Input Interface | RCA (2.0 Vp-p, 1 kΩ) |
Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
Video/Audio Output | |
HDMI/VGA Output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
Recording resolution | Main stream: 720P / WD1 / 4CIF / VGA / CIF ;Sub-stream: 4CIF (non-real-time) / 2CIF (non-real-time) / CIF |
Frame Rate | 1/16 fps ~ Real time frame rate |
Video Bit Rate | 32 Kbps ~ 4 Mbps |
Stream Type | Video/Video&Audio |
Audio Output | 1-ch RCA(2.0 Vp-p, 1kΩ) |
Audio Bit Rate | 64kbps |
Dual Stream | Support |
Playback Resolution | 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
Synchronous Playback | 16-ch |
Network management | |
Remote connections | 128 |
Network protocols | TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP?, HTTPS |
Hard Disk Driver | |
Interface Type | 1 SATA Interface |
Capacity | Up to 6 TB capacity for each disk |
External Interface | |
Network Interface | 1; 10M / 100M self-adaptive Ethernet interface |
USB Interface | 2 USB 2.0 Interfaces |
General | |
Power Supply | 12V DC |
Consumption | ≤ 20W(without hard disks) |
Working Temperature | -10 oC ~+55 oC (14 oF ~ 131 oF) |
Working Humidity | 10% ~ 90% |
Chassis | 1U chassis |
Dimensions | 260 × 222 × 45mm (10.2 × 8.7 × 1.8 inch) |
Weight | ≤ 1.2 Kg (2.6 lb) (without hard disks) |
Hikvision DS 7216HGHI E1 HD TVI DVR Kayıt Cihazı Pdf Dosyası500.58 KB
