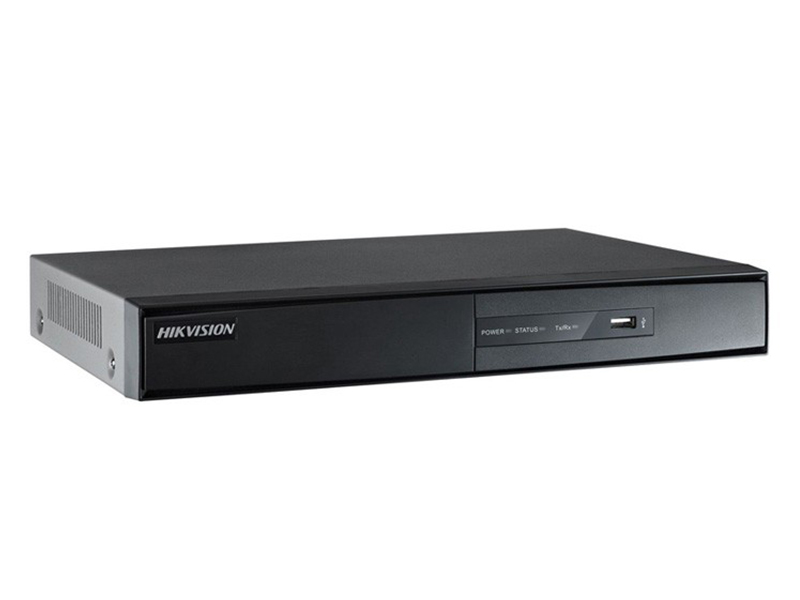

Hikvision DS 7216HQHI F2/N HD TVI DVR Kayıt Cihazı

Özellikler

H.264 ,H.264+& Dual-stream video compression
Support HD-TVI, IPC,AHD and analog cameras with adaptive access
Up to 3 MP resolution for recording of the first 2 channels of DS-7208HQHI-F2/N, and the first 4 channels of DS-7216HQHI-F2/N
Support 1080P lite mode enabled to realize the real-time 1080P lite and 720P lite resolution
Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution for DS-7208HQHI-F2/N and 4K (3840 × 2160) resolution for HDMI output of DS-7216HQHI-F2/N
Long transmission distance over coax cable
Up to 4/8-ch synchronous playback at 1080p resolution
Playback at up to 256X speed.

Teknik Özellikler

Video/Audio Input
Ses girişi	1-ch
Video Sıkıştırma	H.264,H.264+
Analog ve HD-TVI video girişi	16-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Desteklenen Kameralar	Support HDTVI input: 3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz
	Note: The 3 MP signal input is only available for the first 2 channels of DS-7208HQHI-F2/N, and the first 4 channels of DS-7216HQHI-F2/N.
	Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
	support CVBS input
IP Video Input	2-ch Up to 2MP resolution
Video Girişi Arayüzü	BNC (1.0 Vp-p, 75Ω)
Ses Sıkıştırma	G.711
Ses Girişi Arayüzü	RCA (2.0 Vp-p, 1 kΩ)
Çift Yön Ses	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
CVBS Çıkışı	1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480
HDMI/VGA Çıkışı	HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz
HDMI/VGA Çıkışı	VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
Kayıt Çözünürlüğü	When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
	When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF
Çerçeve Hızı	Main stream:
	When 1080p Lite mode not enabled:
	For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps
	For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
	When 1080p Lite mode enabled:
	3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Hızı	32 Kbps-6 Mbps
Akış Tipi	Video/Video&Audio
Ses Çıkışı	1-ch RCA(Linear, 1kΩ)
Ses Bit Hızı	64kbps
Çift Akış	Support
Oynatma Çözünürlüğü	3 MP/1080p/720p/VGA/WD1/4CIF/CIF
Senkronize yeniden oynatma	16-ch
Ağ yönetim
Uzak Bağlantı	128
Ağ Protokolleri	TCP/IP, PPPoE, DHCP, Hik Cloud P2P,DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS,ONVIF
Sabit Disk Sürücü
Arayüzü Türü	2 SATA Interfaces
Kapasite	Up to 6 TB capacity for each disk
Harici Arayüzü
Ağ Arayüzü	1; 10M / 100M / 1000M self-adaptive Ethernet interface
USB Arayüzü	1 USB 2.0 Interface & 1 USB 3.0 Interface
Seri bağlantı Arayüzü	1; standard RS-485 serial interface, half-duplex
Genel
Güç Kaynağı	12V DC
Tüketim	≤ 30W(without hard disks)
Çalışma Sıcaklığı	-10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Çalışma Nem oranı	10% ~ 90%
Kasa	380mm 1U chassis
Boyutlar	380 × 320 × 45 mm
Boyutlar	(15.0 × 12.6 × 1.8 inch)
Ağırlık	≤2 kg(4.4lb)
