Açıklama

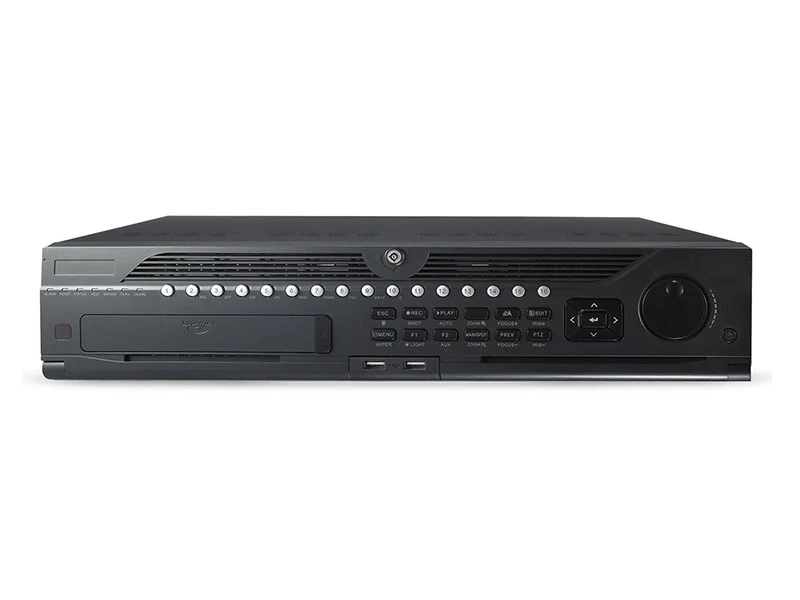

Hikvision DS 9016HQHI SH HD TVI DVR Kayıt Cihazı

Özellikler

Connectable to HD-TVI and analog cameras;
Connectable to the Coaxitron camera/dome with long transmission distance;
Connectable to 5MP network cameras;
Up to 32 network cameras (when all analog channels are disabled) can be added;
Simultaneous HDMI, VGA and CVBS outputs; HDMI output and VGA output at up to 1920×1080P resolution;
New GUI and support starting record with one key;
Multiple recording types: manual, continuous, alarm, motion, motion | alarm, motion & alarm and VCA;
Instant playback for assigned camera during multi-channel live view mode;
Support up to 16-ch synchronous playback at 1080P resolution; and reverse playback for multi-channel;
Smart playback to go through less effective information;
Manual video quality diagnostics;
Customization of tags, searching and playing back by tags;
Locking and unlocking record files;
Support VCA alarm (line crossing detection intrusion detection);
Support HDD quota and group management; different capacity can be assigned to different cameras under quota mode;
Provide up to 8 SATA interfaces and 1 eSATA interface for record and backup;
2 self-adaptive 10M/100M/1000M network interfaces, and 3 working modes are configurable: multi-address, load balance, network fault tolerance;
Support access by EZVIZ Cloud P2P;
Support Hikvision DDNS (Dynamic Domain Name System);
Support Channel-zero encoding to decrease the bandwidth requirement when viewing multiple cameras.

Teknik Özellikler

Video/Audio Input
Ses girişi	16-ch
Video Sıkıştırma	H.264
Analog ve HD-TVI video girişi	16-ch BNC interface (1.0Vp-p, 75 Ω)
Desteklenen Kameralar	720P/25Hz, 720P/30 Hz, 720P/50 Hz, 720P/60 Hz, 1080P/25 Hz, 1080P/30 Hz, CVBS
IP Video Input	18-ch(up to 32-ch) Up to 5MP resolution
Video Girişi Arayüzü	BNC (1.0 Vp-p, 75Ω)
Ses Sıkıştırma	G.711u
Ses Girişi Arayüzü	RCA (2.0 Vp-p, 1 kΩ)
Video/Audio Output
VGA Çıkışı	1-ch, resolution:
VGA Çıkışı	1920×1080P/60Hz,1280×1024/60Hz,1280×720/60Hz, 1024×768/60Hz
CVBS Çıkışı	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI Çıkışı	1-ch
HDMI/VGA Çıkışı	1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Kayıt Çözünürlüğü	Main stream: 1080P (non-real-time) / 720P / WD1/ VGA / 4CIF / CIF
Kayıt Çözünürlüğü	Sub-stream: WD1(12fps) / 4CIF(12fps) / CIF / QCIF / QVGA
Çerçeve Hızı	Main stream: 1/16 fps ~ Real time frame rate
Çerçeve Hızı	Sub-stream: 1/16 fps ~ Real time frame rate
Video Bit Hızı	32 Kbps-10 Mbps
Akış Tipi	Video/Video&Audio
İki Yönlü ses	1-ch (Audio out)
Ses Çıkışı	2-ch, RCA (Linear, 1KΩ, for VGA output and CVBS output respectively)
Ses Bit Hızı	64kbps
Çift Akış	Support
Senkronize yeniden oynatma	16-ch
Ağ yönetim
Uzak Bağlantı	128
Ağ Protokolleri	TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Sabit Disk Sürücü
Arayüzü Türü	8 SATA interfaces for 8 HDDs; 1 eSATA interface
Kapasite	Up to 6 TB capacity for each disk
e-SATA Arayüzü	1 eSATA interface
Harici Arayüzü
Ağ Arayüzü	2 RJ45 10M / 100M / 1000M adaptive Ethernet interfaces
USB Arayüzü	3 USB2.0 interfaces
Seri bağlantı Arayüzü	1RS-485 interface, 1 RS-232 interface, 1 RS-485 keyboard interface
Alarm girişi	16-ch
Alarm Çıkışı	4-ch
Genel
Güç Kaynağı	100 ~ 240VAC, 47 ~ 63Hz
Tüketim	≤ 65W(without hard disks)
Çalışma Sıcaklığı	-10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Çalışma Nem oranı	10% ~ 90%
Kasa	19-inch rack-mounted 2U chassis
Boyutlar	445 × 470 × 90 mm (17.5 × 18.5 × 3.5 inch)
Ağırlık	≤8Kg (17.6 lb) (without hard disks)
