Açıklama

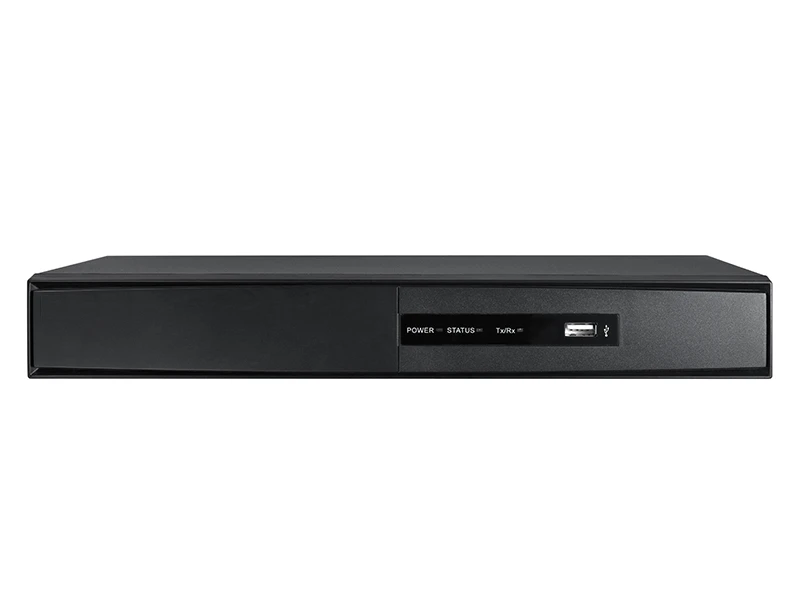

Haikon DS 7208HGHI E1 HD TVI Kayıt Cihazı
Özellikler
- H.264 & Dual-stream video compression
- Support HD-TVI/analog/IP camera triple hybrid
- Support both HD-TVI and analog cameras with
- adaptive access
- Full channel @ 720P resolution non real-time recording
- HDMI and VGA output at up to 1920×1080P
- resolution
- Long transmission distance over coax cable
- Support up to 16-ch synchronous playback
Teknik Özellikler
Audio Input: 1-ch |
Video Compression: H.264 |
Analog and HD-TVI video input: 8-ch BNC interface (1.0Vp-p, 75 Ω) |
Supported camera types: 720P/25, 720P/30, CVBS |
IP Video Input: 2-ch (up to 10-ch) Up to 2MP resolution |
Video Input Interface: BNC (1.0 Vp-p, 75Ω) |
Audio Compression: G.711u |
Audio Input Interface: RCA (2.0 Vp-p, 1 kΩ) |
Two-way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
HDMI/VGA Output: 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
Recording resolution: Main stream: 720P / WD1 / 4CIF / VGA / CIF ;Sub-stream: 4CIF (non-real-time) / 2CIF (non-real-time) / CIF |
Frame Rate: 1/16 fps ~ Real time frame rate |
Video Bit Rate: 32 Kbps ~ 4 Mbps |
Stream Type: Video/Video&Audio |
Audio Output: 1-ch RCA(Linear, 1kΩ) |
Audio Bit Rate: 64kbps |
Dual Stream: Support |
Playback Resolution: 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
Synchronous Playback: 8-ch |
Remote connections: 128 |
Network protocols: TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
Interface Type: 1 SATA Interface |
Capacity: Up to 6 TB capacity for each disk |
Network Interface: 1; 10M / 100M self-adaptive Ethernet interface |
USB Interface: 2 USB 2.0 Interfaces |
Power Supply: 12V DC |
Consumption: ≤ 12W(without hard disks) |
Working Temperature: -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
Working Humidity: 10% ~ 90% |
Chassis: 1U chassis |
Dimensions: 260 × 222 × 45mm (10.2 × 8.7 × 1.8 inch) |
Weight: ≤ 1 Kg (2.2 lb) (without hard disks) |
