Açıklama

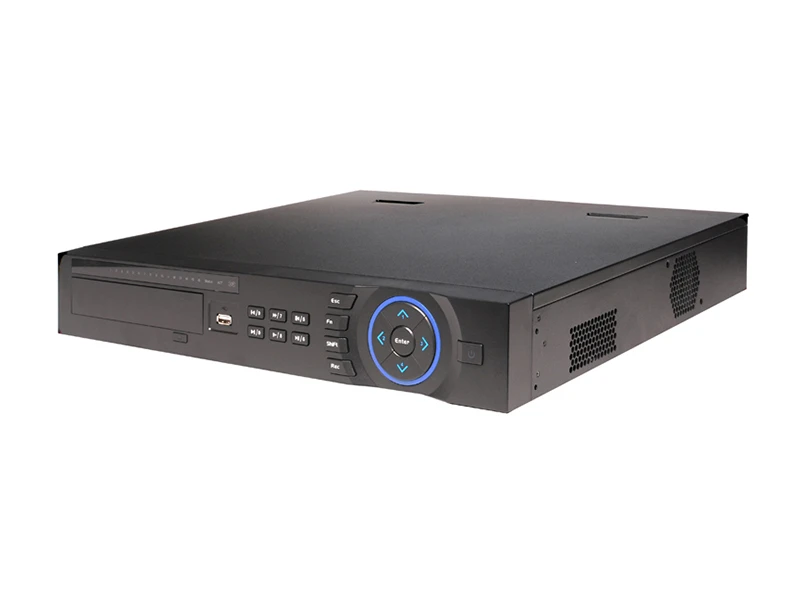

Dahua DH HCVR7408L HDCVI Kayıt Cihazı
Özellikler
- Tribrid: Each channel supports HDCVI/Analog/IP Video input
- 1HDMI/VGA/TV simultaneous video output,1 HDMI separate output
- All channel Max 1080P
- Up to 1080p realtime live view
- H.264 dual-stream video compression
- 4/8 channel synchronous realtime playback, GRID interface & smart search
- Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech , and etc.
- 3D intelligent positioning with Dahua PTZ dome camera
- Support 4 SATA HDDs up to 16TB, 1 eSATA up to 16TB,3 USB2.0
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Teknik Özellikler
System | |||
Main Processor | Embedded processor | ||
Operating System | Embedded LINUX | ||
Video | |||
Input | 8 channel | ||
Video Standard | HDCVI | 1080P/720P HDCVI Camera | |
Analog | NTSC(525Line, 60f/s), PAL(625Line, 50f/s),Effio 960H Camera | ||
IP | 1080P/720P/D1/CIF IP Camera | ||
Audio | |||
Input | 4 channel, BNC | ||
Output | 1 channel, BNC | ||
Two-way Talk | 1 channel input,1channel output, BNC | ||
Display | |||
Interface | 2 HDMI,1 VGA,1 TV | ||
Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 | ||
Display Split | 1/4/8/9 | ||
Privacy Masking | 4 rectangular zones (each camera) | ||
OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||
Recording | |||
Video/Audio Compression | H.264/G.711 | ||
Resolution | 1080P(1920×1080)/720P(1280×720)/960H(960×576/960×480)/D1/4CIF(704×576/704×480)/ | ||
Record Rate | Main Stream: | 1080P/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) | |
Extra Stream | CIF/QCIF(1~25/30fps) | ||
Bit Rate | 48~8192Kb/s | ||
Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | ||
Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||
Video Detection & Alarm | |||
Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips | ||
Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||
Alarm Input | 8 channel | ||
Relay Output | 6 channel | ||
Playback & Backup | |||
Sync Playback | |||
Search Mode | Time/Date, MD & Exact search (accurate to second) | ||
Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | ||
Backup Mode | USB Device/eSATA Device/Internal SATA burner/Network | ||
Network | |||
Ethernet | RJ-45 port (10/100M/1000M) | ||
Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | ||
Max. User Access | 128 users | ||
Smart Phone | iPhone, iPad, Android, Windows Phone | ||
Storage | |||
Internal HDD | 4 SATA ports, up to 16TB | ||
External HDD | 1 eSATA port, up to 16TB | ||
Auxiliary Interface | |||
USB Interface | 3 ports(2 Rear),USB2.0 | ||
RS232 | 1 port, For PC communication & Keyboard | ||
RS485 | 1 port RS485 for PTZ control,1 port RS422 for Keyboard | ||
General | |||
Power Supply | AC 100~240 V, 50/60 Hz | ||
Power Consumption | 40W(without HDD) | ||
Working Environment | -10°C ~+55°C / 10%~90%RH / 86~106kpa | ||
Dimension(W×D×H) | 1.5U, 440mm×410mm×70mm | ||
Weight | 6KG(without HDD) |
