Açıklama

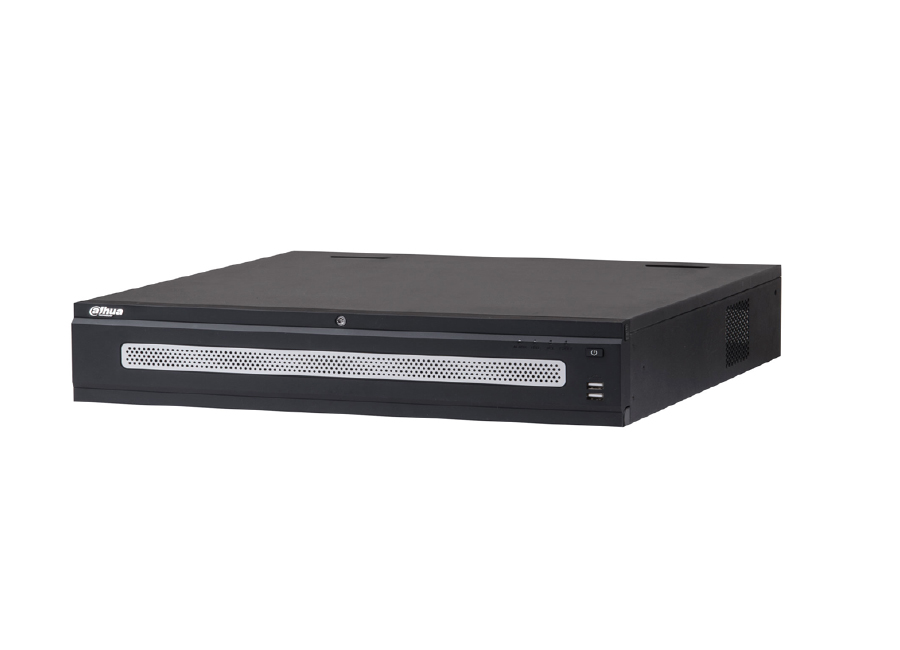

Dahua HCVR8808S URH S3 HDCVI Kayıt Cihazı
Özellikler
- Embedded processor
- Smart H.264 dual-stream video compression
- Support HDCVI/AHD/CVBS/IP video inputs
- Max 64 channels IP camera inputs, each channel up to 12MP
- Max 200Mbps Incoming Bandwidth,384Mbps Forwarding Bandwidth
- Smart Search and Intelligent Video System
- Support RAID0,1,5,10
Teknik Özellikler
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Display | |
| Interface | 8CH/16CH: HDMI 1(4K),HDMI 2( 1080P),1 VGA,1 TV |
| Resolution | 3840×2160,1920×1080, 1280×1024, 1280×720, 1024×768 |
| Multi-screen Display | 1/4/8/9/16/25/36 |
| Privacy Masking | 4 rectangular zones (each camera) |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, |
| FTP, Snapshot, Buzzer and Screen Tips | |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis |
| Alarm input | Ağu.16 |
| Relay Output | 6 channel |
| Playback and Backup | |
| Playback | 1/4/9/16 |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Internal SATA burner/Network |
| Storage | |
| Internal HDD | 8 SATA Ports, up to 8 TB capacity for each disk |
| eSATA | 1 |
| Auxiliary Interface | |
| USB | 4 USB Ports (2USB 2.0 , 2 USB 3.0) |
| RS232 | 1 Port，for PC communication & Keyboard |
| RS422 | 1 Port，for PTZ Control |
| RS485 | 1 Port, for PTZ Control |
| Audio and Video | |
| HDCVI Camera Input | 8/16 Channel |
| IP Camera Input | up to 64 Channel, each channel up to 12MP |
| Audio In/Out | 8/16 Channel input,1 Channel output, BNC |
| Two-way Talk | 1 MIC IN,1 MIC OUT, BNC(independent) |
| Recording | |
| Compression | H.264+/H.264 |
| Resolution | 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF |
| Record Rate | Main stream: 1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1/16~25/30fps) |
| Sub steram:960H/D1/CIF/QCIF(1/16~25/30fps) | |
| Bit Rate | Main stream: 1024~ 8192 Kb/S Per Channel |
| Sub steram:16~ 320Kb/S Per Channel | |
| Record Mode | Manual, Schedule (Regular, Continuous), MD, Stop |
| Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Network | |
| Interface | 2 RJ-45 Port (1000M) |
| Network Function | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.42, CGI Conformant |
| Electrical | |
| Power Supply | AC 100~240V,50/60HZ |
| Power Consumption | <40w without="" hdd="" br=""> |
| Environmental | |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| Construction | |
| Dimensions | 2 U, 444mm×460mm×96mm |
| Net Weight | 10 kg (without HDD) |
| Gross Weight | 11.24 kg (without HDD) |
| Installation | Desktop installation/Rack installation |
| Certifications | |
| Certifications | FCC: 47 CFR PART 15 SUBPART B, 2015 |
| CE: EN 60950-1:2006+A11:2009+A1:2010+A12: | |
| 2011+A2:2013 | |
| UL 60950-1 and CAN/CSA C22.2 No. 60950-1-07 | |
Dahua HCVR8808S URH S3 HDCVI Kayıt Cihazı Pdf Dosyası797.29 KB
