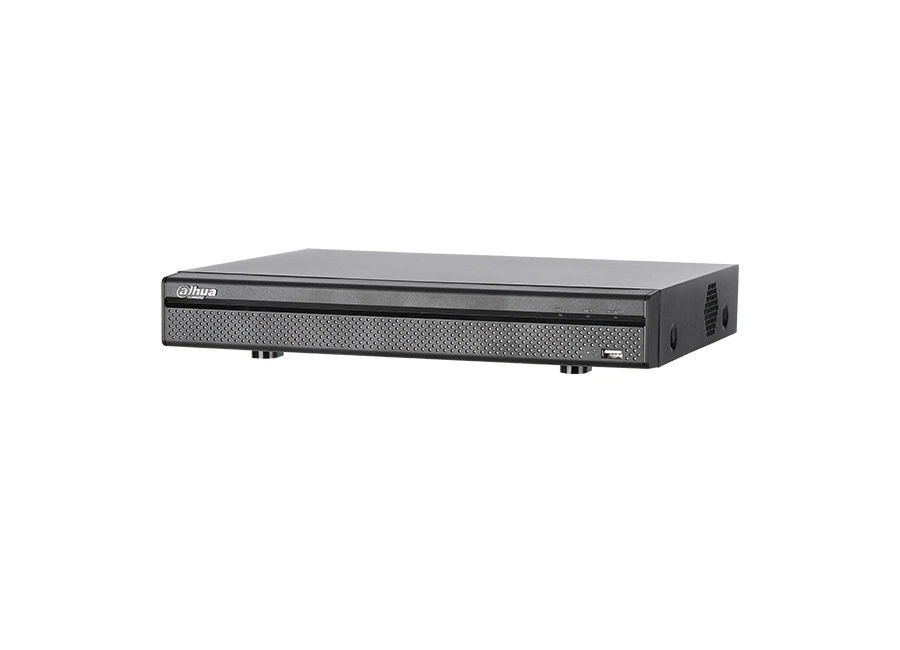

Dahua DH XVR5108H X 8P Hybrid Kayıt Cihazı

Özellikler

H.265+/H.265 dual-stream video compression
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 6/12 channels IP camera inputs, each channel up to 6MP;
Supports SMD, human face detection, IVS
All-channel support HDCVI PoC AT & AF camera

Teknik Özellikler

System
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Video and Audio
Analog Camera Input	4/8 Channel, BNC
HDCVI Camera	5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera	5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera	5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera	PAL/NTSC
IP Camera Input	4+2/8+4 Channel, each channel up to 6MP
Audio In/Out	1/1, RCA
Two-way Talk	Reuse audio in/out, RCA
Recording
Compression	H.265+/H.265/H.264+/H.264
Resolution	5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate	Main stream:
	All channel 5M-N@10fps/4MN@15fps/1080P@15fps, 108
	0N/720P/960H/D1/CIF@25/30fps
	Sub stream:
	D1/CIF(1 fps–15 fps)
Bit Rate	32 kbps–6144 kbps Per Channel
Record Mode	Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval	1 min– 60 min (default: 60 min), Pre-record: 1 sec–30 sec, Post-record: 10 sec–300 sec
Audio Compression	AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate	8 KHz, 16 bit Per Channel
Audio Bit Rate	64 kbps Per Channel
Display
Interface	1 HDMI ,1 VGA
Resolution	4CH: 1920 × 1080, 1280 × 1024, 1280 × 720
	8CH:HDMI:1920 × 1080, 1280 × 1024, 1280 × 720
	VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display	When IP extension mode not enabled:
	4CH: 1/4
	8CH: 1/4/8/9
	When IP extension mode enabled:
	8CH: 1/4/6
	8CH: 1/4/8/9/16
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface	1 RJ-45 Port (100M)
Network Function	HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
Interoperability	ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input	N/A
Relay Output	N/A
Playback and Backup
Playback	4CH: 1/4
Playback	8CH: 1/4/9
Search Mode	Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode	USB Device/Network
Storage
Internal HDD	1 SATA Port, up to 10TB capacity
eSATA	N/A
Auxiliary Interface
USB	2 USB 2.0
RS232	N/A
RS485	1 Port, for PTZ Control
Electrical
Power Supply	4CH: 53V DC/1.13A
Power Supply	8CH: 53V DC/1.81A
Power Consumption	4CH: ≤5W
(without HDD)	8CH: ≤8W
Construction
Dimensions	Mini 1U, 325 mm × 255 mm × 55 mm (12.8 " x 10 " x 2.2 ")
Device with PFH101	483 mm x 281 mm x 56 mm (19.0 " x 11.1 " x 2.2 ")
Rack Mount Tray
Net Weight	4CH: 1.16 kg (2.56 lb)
(without HDD)	8CH: 1.24 kg (2.73 lb)
Gross Weight	4CH: 2.09 kg (4.60 lb)
Gross Weight	8CH: 2.28 kg (5.03 lb)
Installation	Desktop installation
Environmental
Operating Conditions	-10 °C to +55 °C (+14 °F to +131 °F), 10%RH–90%RH
Storage Conditions	-20 °C to +70 °C (-4 °F to +158 °F), 0%RH–90%RH
Third-party Support
Third-party Support	Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications
Certifications	FCC: Part 15 Subpart B
	CE: CE-LVD: EN 60950-1/IEC 60950-1
	CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
