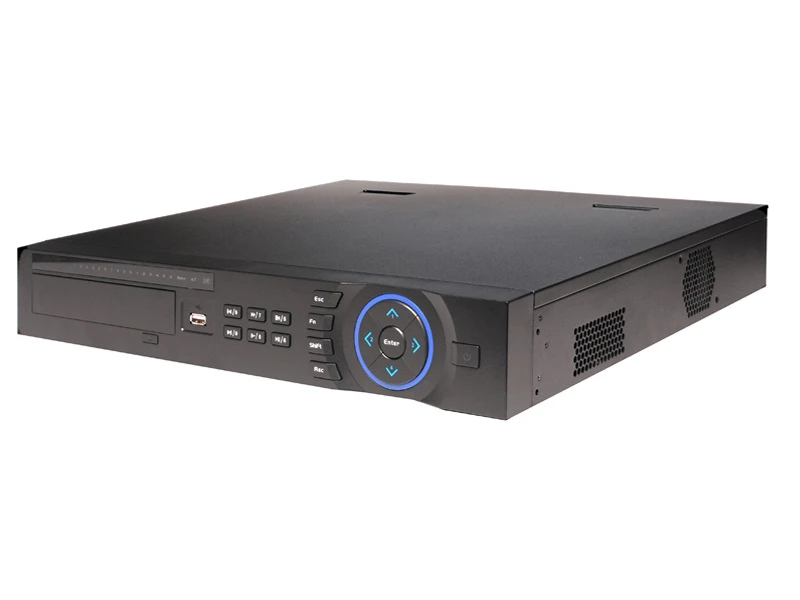

Dahua iHCVR5108HE-F HD CVI Hybrid Kayıt Cihazı
Özellikler
- Yüz Tanıma özellikli 8 Kanal 720P Hybrit ( HDCVI + IP ) DVR
- 1 Kanal Yüz tanıma,anında alarm verme,Arşivleme.
- 8 Kamera 1080P Gerçek Zamanlı Önizleme ve 720P Kayıt,
- 1xSes, 8 Alarm girişi,1xRJ45 (100M), 1xRS-485,
- H.264 DualStream,
- HDMI/VGA Eş Zamanlı Video Çıkışı,
- 4 Kanal SenkronizeGerçek Zamanlı Oynatma,
- GRID Arayüz & Akıllı Arama, Çoklu Network Görüntüleme,
- 4 TB'a kadar 1 Sata HDD, 2xUSB2.0,
- DC12V HDCVI ve IP Kamera bağlayabilme.
Teknik Özellikler
| System |
| Main Processor : Embedded processor |
| Operating System : Embedded LINUX |
| Video |
| Input : 8 channel, BNC |
| Standard : HDCVI : 720P HDCVI Camera |
| IP : Support 2ch 1080P/720P IP Camera |
| Audio |
| Input : 1 channel, RCA |
| Output : 1 channel, RCA |
| Two-way Talk : Reuse audio input/output channel 1 |
| Display |
| Interface : 1 HDMI, 1 VGA |
| Resolution : 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Display Split : 1/4/8/9 |
| Privacy Masking : 4 rectangular zones (each camera) |
| OSD : Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording |
| Video/Audio Compression : H.264/G.711 |
| Record Rate : Main Stream: 720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) |
| Extra Stream : CIF/QCIF(1~25/30fps), D1(1~12/15fps) |
| Bit Rate : 48~4096Kb/s |
| Record Mode : Manual, Schedule(Regular(Continuous), MD), Stop |
| Record Interval : 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Video Detection & Alarm |
| Trigger Events : Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips |
| Video Detection : Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
| Alarm Input : 8 channel |
| Relay Output : 3 channel |
| Playback & Backup |
| Sync Playback : 1/4/9 |
| Search Mode : Time/Date, MD & Exact search (accurate to second) |
| Playback Functions : Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode : USB Device/Internal SATA burner/Network |
| Network |
| Ethernet : RJ-45 port (10/100M) |
| Network Functions : HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P |
| Max. User Access : 128 users |
| Smart Phone : iPhone, iPad, Android, Windows Phone |
| Storage |
| Internal HDD : 1 SATA port, up to 4TB |
| Auxiliary Interface |
| USB Interface : 2 ports(1 Rear), USB2.0 |
| RS485 : 1 port, For PTZ Control |
| General |
| Power Supply : DC12V/2A |
| Power Consumption : 10W(without HDD) |
| Working Environment : -10°C ~+55°C / 10%~90%RH / 86~106kpa |
| Dimension(W×D×H) : Mini 1U, 325mm×255mm×55mm |
| Weight : 1.5KG(without HDD) |
Dahua iHCVR5108HE F HD CVI Hybrid Kayıt Cihazı Pdf Dosyası252.54 KB
