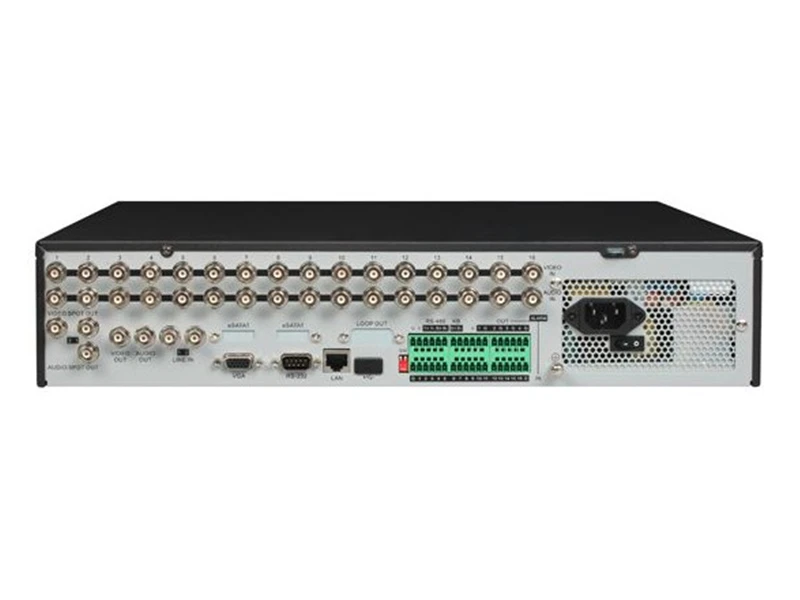

Haikon DS 9008HFI S Hybrid Kayıt Cihazı
Özellikler
- H.264 video compression
- VGA, MAIN and AUX independent local video output
- Advanced motion detection
- Support up to 8 SATA hard disk drives
- Dual stream
- Up to 32 users
- Advanced motion detection
- Easy back-up to USB and CD/DVD-RW
Teknik Özellikler
Video Compression: | H.264 |
Analog Video Input: | 8-ch, BNC(1.0Vp-p, 75Ω), PAL/NTSC adaptive |
IP Video Input: | 8-ch 4CIF/4-ch 720P Real Time, or 4-ch UXGA not Real Time |
Composite Video Input: | up to 16-ch (Analog video + IP video) |
Audio Compression: | OggVorbis |
Audio Input: | 8-ch, BNC(2.0Vp-p, 1kΩ) |
Two-way Audio: | 2-ch, BNC(2.0Vp-p, 1kΩ) |
Live View Resolution: | PAL:704×576 NTSC:704×480 |
CVBS Output: | 2-ch, BNC(1.0Vp-p, 75Ω) |
VGA Output: | 1, resolution: 1024×768/60Hz, 1024×768/70Hz, 1280×1024/60Hz |
Recording Resolution: | 4CIF/DCIF/2CIF/CIF/QCIF |
Frame Rate: | 25 fps (P) / 30fps ( N) |
Video Bit Rate: | 32Kbps~2048Kbps, or user-defined (Max. 6144Kbps) |
Audio Output: | 2-ch, BNC(linear electrical level, 600Ω) |
Audio Bit Rate: | 16kbps |
Synchronous Playback: | 8-ch |
Dual Stream: | Support |
Interface Type: | 8 SATA interfaces for 4 HDDs + 1 DVD-R/W (default), or 8HDDs |
Capacity: | Up to 2TB capacity for each disk |
Network Interface: | 1, RJ45 10M/100M/1000M adaptive Ethernet interface |
Serial Interface: | RS-232, RS-485, Keyboard |
USB Interface: | 3, USB2.0 |
Alarm Input: | 16-ch |
Alarm Output: | 4-ch |
Power Supply: | 100~240VAC, 6.3A, 50~60Hz |
Consumption: | ≤70W (without hard disk or DVD-R/W) |
Working Temperature: | -10°C~+55°C(14°F~131°F) |
Working Humidity: | 10%~90% |
Chassis: | 19" standard 2U chassis |
Dimensions: | 450(D)×450(W)×95mm(H)(17.72"(D)×17.72"(W)×3.74"(H)) |
Weight(Without HDD): | ≤8000g(17.64lbs) |
Haikon DS 9008HFI S Hybrid Kayıt Cihazı PDF Dosyası187.24 KB
