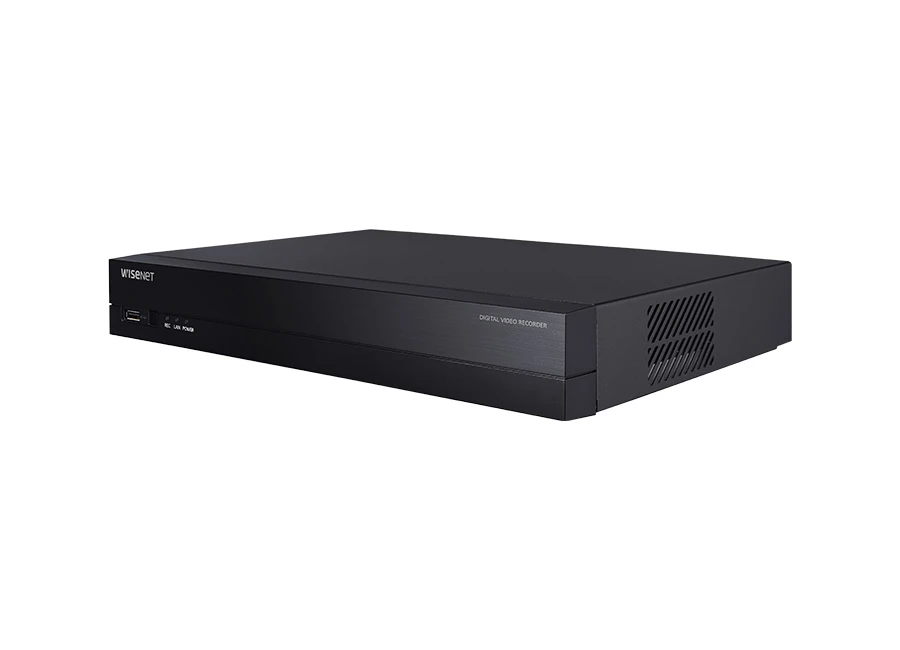

Hanwha Techwin HRX 820 Pentabrid DVR Kayıt Cihazı

Özellikler

5-in-1 8CH Pentabrid DVR
AHD/HDTVI/HDCVI/CVBS/IP inputs
Maximum Analog 8CH + NW 2CH(Max. 10CH), up to 8MP
H.265, H.264, MJPEG
8fps@8MP, 12fps@5MP, 30fps@2MP recording
Coaxial control
Smart search(only Network camera)
Up to 2 SATA HDDs(6TB/HDD)
HDMI/VGA Dual monitor
P2P service(QR code connect)

Teknik Özellikler

Display
Analog camera	Inputs	8CH(1Vp-p 75ohm, BNC)
	Signal Type	AHD(8MP, 5MP, 4MP, 1080p, 720p)
		HDTVI(8MP, 5MP, 4MP, 1080p, 720p)
		HDCVI(5MP, 4MP, 1080p, 720p)
		CVBS(NTSC/PAL)
Network camera	Inputs	Max. 10CH
	Resolution	8MP ~ CIF
	Protocols	SUNAPI(Wisenet), ONVIF
Live	Local Display	1x HDMI, 1x VGA (Dual monitor)
		HDMI: 3840 x 2160, 1920x1080, 1280x720 (1920x1080, Clone mode)
		VGA: 1920x1080, 1280x720
	Resolution	[Ananlg Camera(NTSC/PAL)]
		- 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH
		[Network Camera]
		- Typ. 2MP(240fps)
Performance
Record	Compression	H.265, H.264, MJPEG
	Record Rate(Analog)	Analog Camera(NTSC/PAL)
		(Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH
		(Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full fps/CH
		* The maximum recording frame rate depends on the frame rate of the input camera.
	Recording Bandwidth	Max. 40Mbps (Analog Camera only) ~ 28Mbps (Network Camera only)
	Resolution	8MP ~ CIF
	Mode	Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track
	Event Trigger	Alarm Input
		Analog Camera : Video Loss, Motion Detection,Tampering
		Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event
	Event Action	E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
Search & Play	Playback Bandwidth	Max. 32Mbps (10CH simultaneously)
	User	Max. 4 Users (Local 1, Remote 3)
	Simultaneous playback	10CH(Local Monitor)
		4Ch (CMS, Wisenet Mobile), 1Ch(Web)
	Fisheye Dewarping	WEB / CMS
Storage	Supported HDD	Up to 6TB
	HDD Slot	SATA 2ea(Max 12TB)
Backup	File backup	BU, EXE(Include Player), AVI(Webviewer only)
	Function	Max. 10 CH play, Date-time/title display
Functions
PTZ	Control	Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller
Smart phone	Support Model	iOS, Android
	Protocol Support	RTP, RTSP, HTTP, CGI(SUNAPI)
	Control	Live(8ch) : Multi-Profile Support
		Playback(4Ch Multi Playback, Max 2MP)
		Event push
	Max. Remote Users	Search(3), Live Unicast(10)
Redundancy	ARB	Support
Easy configuration		Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code)
Coaxial Control		CVBS(Pelco-C)/AHD/CVI/TVI
Interface
HDMI		1EA
VGA		1EA
BNC		8CH In / 1CH Out(Spot Output)
Audio		Out(1EA, RCA, Line)
Ethernet		RJ-45(10/100/1000BASE-T)
Alarm		In 8EA, Out 4EA
		- Relay Out1(NO/NC/COM)
		- Relay Out2~4(NO/COM)
USB		3EA(Front USB2.0 2a , Rear USB 3.0 1ea)
Serial(Protocols)		RS-485 (Samsung-T/Pelco-D/Pelco-p) * for PTZ
Power inlet		1EA DC Input Jack
System
System Control		Mouse, IR Remocon, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000)
Language		English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
Environmental
Operating Temperature		°C to +40°C(+32℉ to +104℉)
Operating Humidity		20% ~ 85% RH
Certification		UL, CE, FCC, KC
Electrical
Power Input		DC12V
Power Consumption		Max. 32W (6T HDD 2ea)
Mechanical
Color / Material		Black / Metal
Dimension (WxHxD)		370.0x 44.0 x 320mm(14.57” x 1.73” x 12.6”)
Weight		Approx. 2.5Kg (5.6 lb, 4TB HDD 1ea)
Network
Protocol		TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS		Wisenet DDNS
Transmission speed		Analog Camera(NTSC/PAL)
		(Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH, 720p 30/25fps/CH, SD 30/25fps/CH
		(Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full fps/CH
		* The maximum recording frame rate depends on the frame rate of the input camera.
Transmission Bandwidth		Max. 20Mbps
Audio	Input/Output	8 Line in / 1 Line out
	Compression	G.711 (N/W Cam G.711, 726)
	Audio Communication	2-Way
Max Remote Users		Search(3), Live Unicast(10), Multicast(20)
Security		IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup)
		Device Certificate(Hanwha Techwin Root CA)
Viewer Software		SSM, Webviewer, Smart Viewer, Wisenet mobile
		Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
