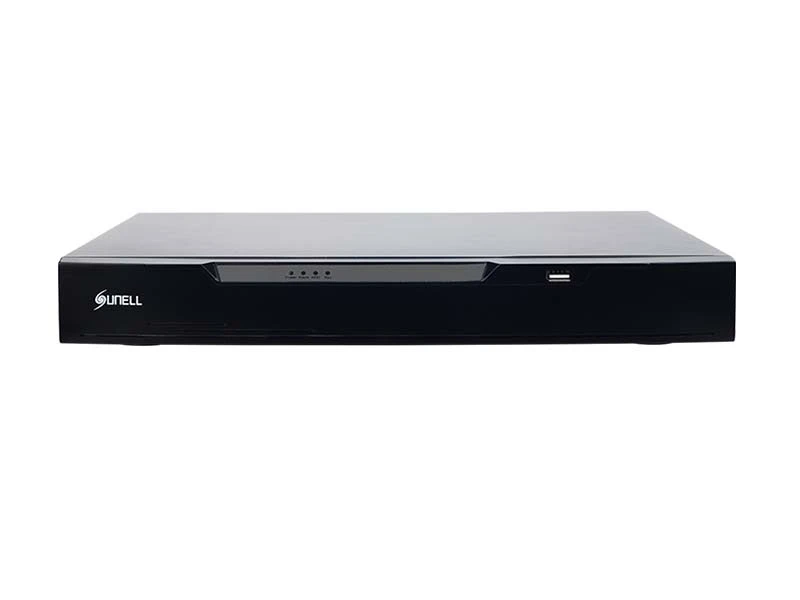

Sunell SN ADR2608E2 Hybrid DVR Kayıt Cihazı
Özellikler
- Supports AHD/TVI/CVI/CVBS/IP video inputs
- Supports VGA, HD-OUT, CVBS output
- Easy to use Same Interface of GUI/WEB/Client
- Support various mobile monitoring:（IOS, Android）
- Support more than languages
- Perfect protection circuit, unique triple watchdog function
- Supporting web, IMS, provide SDK development
Teknik Özellikler
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded LINUX |
| Video and Audio | |
| Analog Camera Input | 8ch BNC |
| AHD Camera | 5MP / 4MP / 3MP / 1080P / 720P @25/30fps |
| TVI Camera | 1080P / 720P @25/30fps |
| CVI Camera | 1080P / 720P @25/30fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | 4ch, each channel up to 5MP |
| Audio In/Out | 8ch input, 1ch output, RCA |
| Two-way Talk | N/A |
| Display | |
| Interface | 1ch HD-OUT, 1ch VGA |
| Resolution | HD-OUT: 1920×1080, 1280×1024, 1440×900 |
| VGA: 1920×1080, 1280×1024, 1440×900 | |
| Multi-screen Display | 1 / 4 / 9 |
| Recording | |
| Compression | H.264 High Profile |
| Resolution | 5MP/4MP/3MP/1080P/720P/960H &etc. |
| Record Rate | 5MP@11fps, 4MP@15fps, 3MP@18fps, |
| 1080P/720P @25/30fps | |
| Bit Rate | 1Kbps ~ 6144Kbps Per Channel |
| Record Mode | Manual, Event, Timer |
| Record Interval | Post-record: 5 ~ 60s |
| Video Detection and Alarm | |
| Trigger Events | Recording, Buzzer, Push message, Pop up message |
| Video Detection | Motion Detection, Video Loss, Camera Tamper |
| Alarm in/out | 4/1 |
| Network | |
| Interface | 1 RJ-45 port (10/100Mbps) |
| Network Function | HTTP, TCP/IP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, |
| Max. User Access | Access 5 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.6, SDK |
| Playback and Backup | |
| Playback | 8 / 4 / 1 |
| Search Mode | Time /Date, Alarm, Picture grid, Event |
| Playback Function | Play, Pause, Stop, Next Frame, Fast play, Slow Play, Layout, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB HDD |
| Storage | |
| Internal HDD | 2 SATA Ports, up to 6TB for each HDD |
| Mounting Mode | Embedded |
| eSATA | N/A |
| Interface | |
| USB | 2 ports (USB 2.0 x2) |
| RS232 | N/A |
| RS485 | 1 Port, for PTZ Control |
| General | |
| Power Supply | DC12V/4A |
| Power Consumption | Max 10W (without HDD) |
| Operating Temperature | -10 °C ~ 50 °C (14 °F ~ 122 °F) |
| Strorage Conditions | Less than 90% RH |
| Certifications | CE/FCC |
| Dimensions | 350mm(L)x305mm(W)x49mm(H) |
| Net Weight | 1900g |
Sunell SN ADR2608E2 Hybrid DVR Kayıt Cihazı Pdf Dosyası307.22 KB
