Açıklama

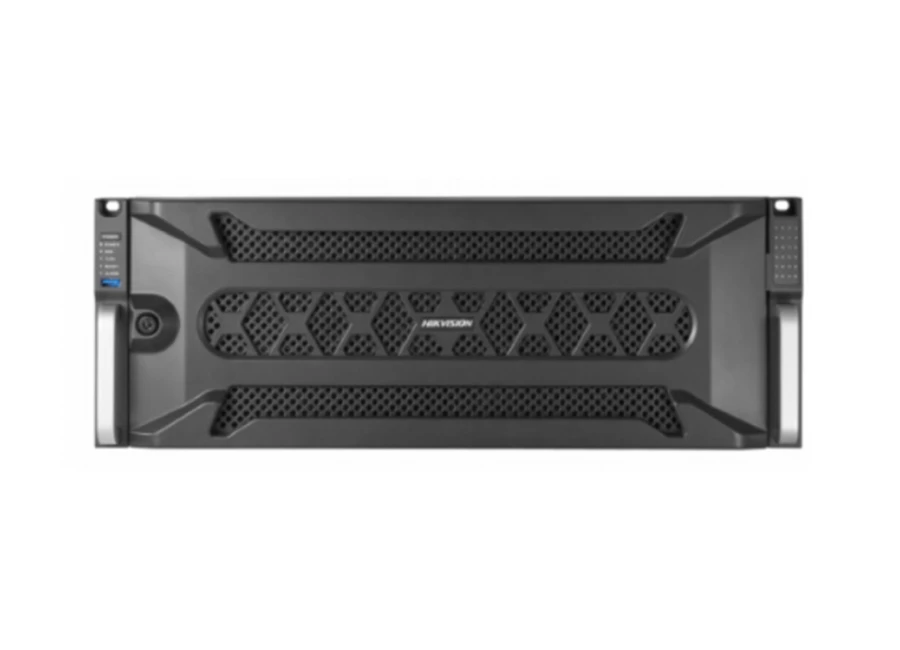

Hikvision DS 96128NI I24 H NVR Kayıt Cihazı
Özellikler
- Third-party network cameras supported
- Up to 12 Megapixels resolution recording
- Video outputs at up to 4K (4096*2160) resolution
- Supports decoding up to 20 channels at 1080P resolution
- Up to 128/256 IP cameras can be connected with
- 512M/768M incoming bandwidth
- Up to 24 SATA interfaces
- Supports H.264+,H.264,MPEG4,H.265,MJPEG video format
- Support redundant power supply to improve the system stability
- Support HDD hot swap with RAID0,1,5,6,10 storage scheme configurable
- Support various VCA detection alarm and VCA search
Teknik Özellikler
Video / Ses Girişi | |
İki Yönlü ses girişi | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
IP Video girişi | 128-ch |
Network | |
Incoming bandwidth | 576Mbps |
Outgoing bandwidth | 512Mbps |
Uzak Bağlantı | 256 |
Video/Audio Output | |
HDMI Output | 2-ch, resolution: 4K(4096*2160)/60Hz, 4K(3840*2160)/30Hz, 2K(2560*1440)/60HZ, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Recording Resolution: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Ses Çıkışı | 1-ch, RCA (2.0Vp-p, 1KΩ) |
VGA Çıkışı | 1-ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Decoding | |
Live view / Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Capability | Up to 116-ch@1080P |
Hard Disk | |
miniSAS (opsiyonel) | 2 miniSAS interface |
eSATA | 1 eSATA interface |
Kabiliyeti | Up to 8TB capacity for each HDD |
Disk Dizisi | |
Dizisi türü | RAID0, RAID1, RAID5, RAID6, RAID10 |
Dizisi sayısı | 12 |
Harici Arayüzü | |
Optik fiber arayüzü | 4 1000 Mbps optional optic fiber interfaces |
Ağ Arayüzü | 4 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces |
Seri bağlantı Arayüzü | RS-232, RS-485, Keyboard |
USB Arayüzü | Front panel: 2 × USB 2.0 |
Rear panel: 2 × USB 3.0 | |
Alarm iç | 16-ch |
Alarm dış | 4-ch |
General | |
Güç Kaynağı | 100-240 VAC, 550W |
Tüketim (hard disk ve POE olmadan) | ≤ 140W |
Çalışma Sıcaklığı | 0 ºC ~ +50 ºC (32ºF ~ 122ºF) |
Çalışma Nem oranı | 10 % ~ 90 % |
Kasa | 4U chassis |
Boyutlar | 447 × 528 × 172mm (17.6 20.8 6.8 inch) |
Ağırlık (HDD hariç) | ≤ 23 kg (50.7 lb) |
Hikvision DS 96128NI I24 H NVR Kayıt Cihazı Pdf Dosyası669.46 KB
