Açıklama

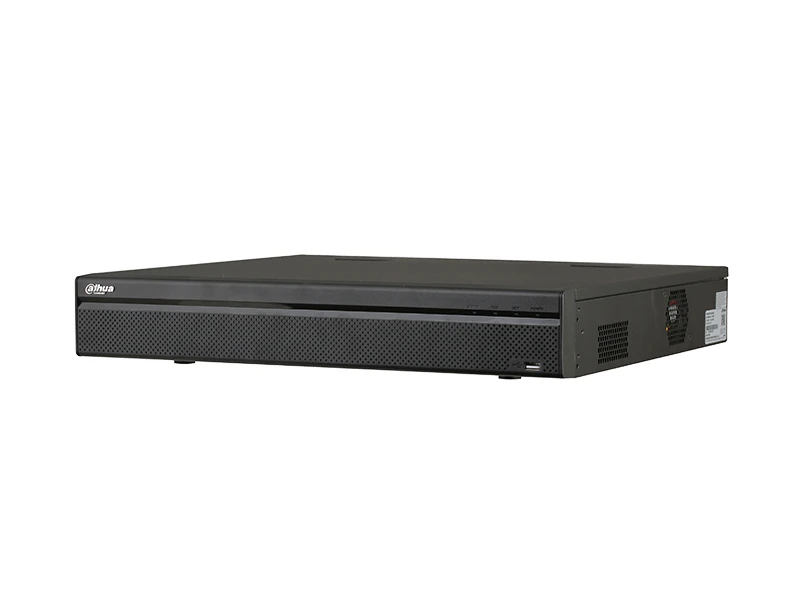

Dahua NVR4416 16P 4KS2 NVR Kayıt Cihazı
Özellikler
- H.265/H.264 codec decoding
- Max 200Mbps Incoming Bandwidth
- Up to 8MP Resolution for Preview and Playback
- Up to 2ch@4K/8ch@1080P decoding
- HDMI/VGA simultaneous video output
- Support IPC UPnP, 16PoE ports
Teknik Özellikler
| System | |
| Main Processor | Quad-core embedded processor |
| Operating System | Embedded LINUX |
| Aduio and Video | |
| IP Camera Input | 16/32 Channel |
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 |
| VGA: 1920×1080, 1280×1024, 1280×720 | |
| Decoding Capacity | 2ch@4K 30fps, 8ch@1080P 30fps |
| Multi-screen Display | 16CH: 1/4/8/9/16 |
| 32CH: 1/4/8/9/16/25/36 | |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording |
| Recording | |
| Compression | H.265/ H.264 |
| Resolution | 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. |
| Recorde Rate | 200Mbps |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: |
| 1 ~ 30 sec, Post-record: 10 ~ 300 sec | |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), |
| Video Loss and Tampering | |
| Alarm input | 16 Channel |
| Relay Output | 4 Channel |
| Playback and Backup | |
| Playback | 1/4/9/16 |
| Search Mode | Time /Date, MD and Exact Search |
| (accurate to second), Smart search | |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, |
| Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom | |
| Backup Mode | USB Device/Network |
| Third-party Support | |
| Third-party Support | Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more |
| Network | |
| Interface | 1 RJ-45 Port(10/100/1000Mbps) |
| PoE | 16 ports (IEEE802.3af/at) |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, SDK, CGI |
| Storage | |
| Internal HDD | 4 SATA III Ports, Up to 6 TB capacity for each HDD |
| HDD Mode | Single |
| Auxiliary Interface | |
| USB | 2 ports(1 USB2.0, 1 USB3.0) |
| RS232 | 1 Port, for PC Communication and Keyboard |
| RS485 | 1 Port, for PTZ Control |
| Electrical | |
| Power Supply | AC100V ~ 240V, 50 ~ 60 Hz |
| Power Consumption | |
| PoE: Max 25.5w for single port, 150w in total | |
| Environmental | |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Construction | |
| Dimensions | 1.5U, 440mm×411.1mm×76mm |
| (17.3" x 16.2" x 3.0") | |
| Net Weight | 4.7kg (10.4lb) (without HDD) |
| Gross Weight | 7.5kg(16.5 lb)(without HDD) |
| Certifications | |
| CE | EN55032, EN55024, EN50130-4, EN60950-1 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| UL | UL60950-1 |
Dahua NVR4416 16P 4KS2 NVR Kayıt Cihazı Pdf Dosyası629.81 KB
