Açıklama

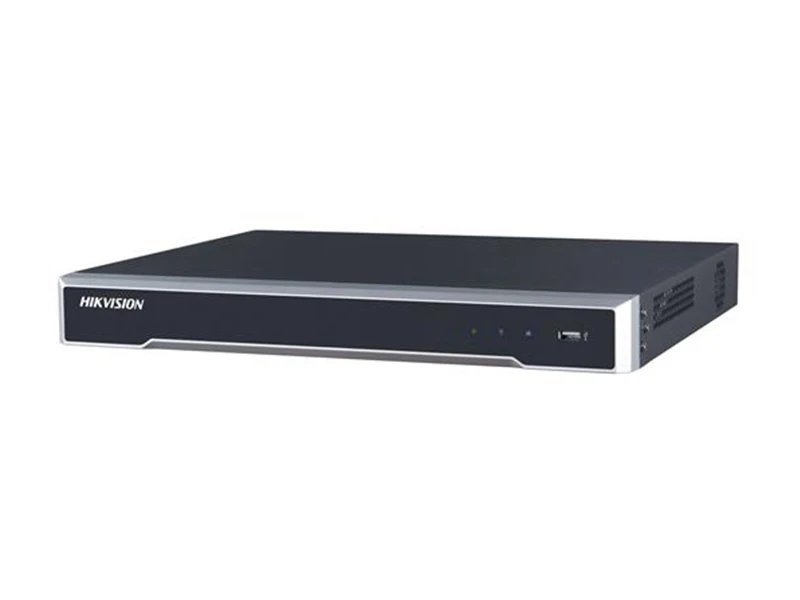

Hikvision DS 7616NI Q2 NVR Kayıt Cihazı

Third-party network cameras supported
Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be
realized
VCA detection alarm is supported
Instant playback for assigned channel during multi-channel display mode

Video/Audio Input
Two-way audio input	1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input	16-ch
Network
Incoming bandwidth	160Mbps
Outgoing bandwidth	80Mbps
Video/Audio Output
HDMI Output	1-ch, resolution:4K (3840 × 2160)/30Hz,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz.
Audio Output	1-ch, RCA (Linear, 1kΩ)
VGA Output	1-ch, resolution: 19201080P/60Hz, 12801024/60Hz, 1280720/60Hz, 1024768/60Hz
Decoding
Decoding format	H.265/H.265+/H.264/H.264+/MPEG4
Capability	1-ch @ 8 MP / 4-ch @ 1080p
Live view / Playback	8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Hard Disk
SATA	2 SATA interfaces
Capacity	Up to 6TB capacity for each HDD
External Interface
Network Interface	1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface	2, USB2.0
General
Working Temperature	-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity	10 % ~ 90 %
Chassis	1U chassis
Dimensions	385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
Weight(without HDD)	≤ 1 kg (2.2 lb)
