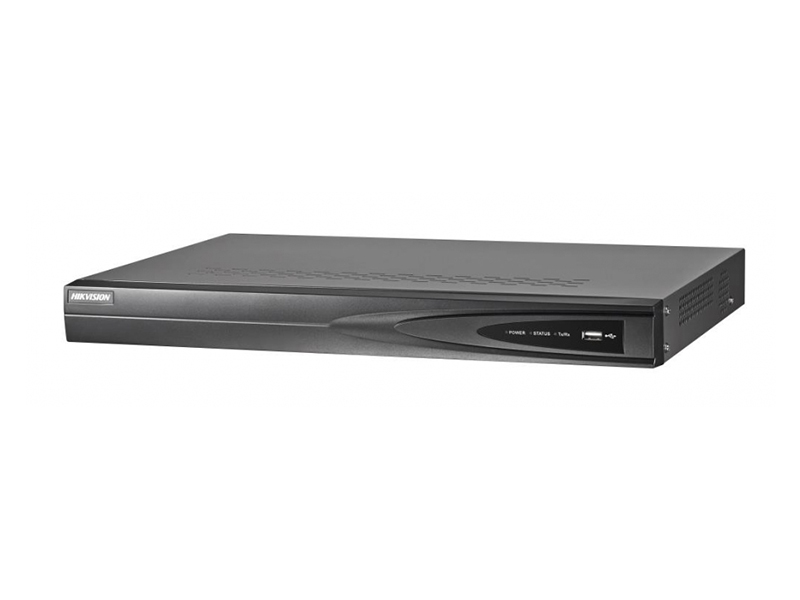

Hikvision DS 7R32NI E2 NVR Kayıt Cihazı
Özellikler
- Third-party network cameras supported
- Up to 6 Megapixels resolution recording
- HDMI and VGA output at up to 1920×1080P resolution
- 4/8/16-ch network cameras can be connected with 40M/80M/160M incoming bandwidth
- Up to 2 SATA interfaces
- Support network detection, including network delay, packet loss, etc.
Teknik Özellikler
| Video / Ses Girişi | |
| İki Yönlü ses girişi | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| IP Video girişi | 16-ch |
| Network | |
| Incoming bandwidth | 160Mbps |
| Outgoing bandwidth | 80Mbps |
| Uzak Bağlantı | 128 |
| Video/Audio Output | |
| HDMI/VGA output | 1-ch, resolution: |
| 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, | |
| 1024 × 768 /60Hz | |
| Recording Resolution | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Çerçeve Hızı | Main stream: 50 fps (P) / 60 fps (N) |
| Sub-stream: 50 fps (P) / 60 fps (N) | |
| Ses Çıkışı | 1-ch, RCA (Linear, 1kΩ) |
| Senkronize Yeniden Oynatma | 16-ch |
| Decoding | |
| Live view / Playback | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | 16-ch@4CIF, 12-ch@720P, |
| 6-ch@1080P | |
| Hard Disk | |
| SATA | 2 SATA interfaces for 2 HDDs |
| Kabiliyeti | Up to 4TB for each disk |
| Harici Arayüzü | |
| Ağ Arayüzü | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| USB Arayüzü | 1 × USB 2.0 and 1 × USB 3.0 |
| Alarm iç | 4-ch(optional) |
| Alarm dış | 1-ch(optional) |
| General | |
| Güç Kaynağı | 12V DC |
| Tüketim (hard disk ve POE olmadan) | ≤ 10W |
| Çalışma Sıcaklığı | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Çalışma Nem oranı | 10 % ~ 90 % |
| Kasa | 380 chassis |
| Boyutlar | 380 × 290 × 48mm (15.0 ×11.4 × 1.9 |
| inch) | |
| Ağırlık (HDD hariç) | ≤ 1 kg |
Hikvision DS 7R32NI E2 NVR Kayıt Cihazı Pdf Dosyası738.81 KB
