Açıklama

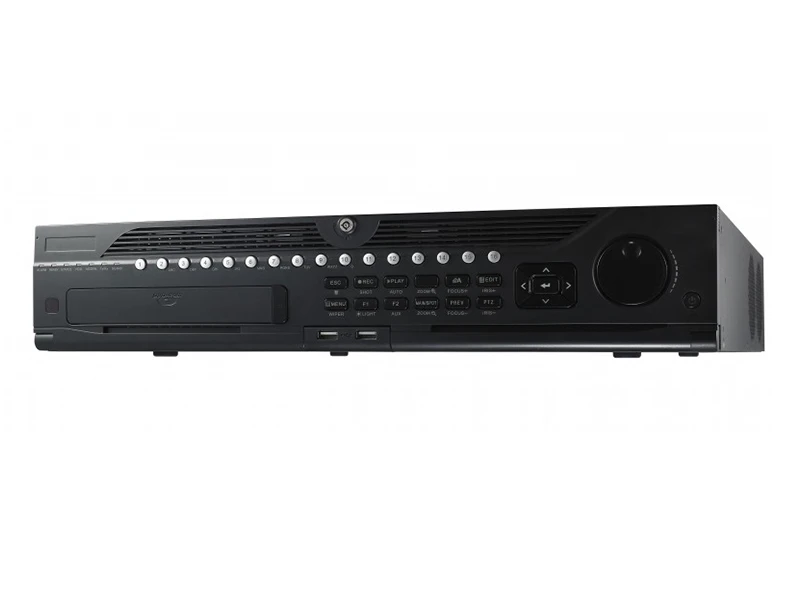

Hikvision DS 9616NI I8 NVR Kayıt Cihazı
Özellikler
- Third-party network cameras supported
- Up to 12 Megapixels resolution recording
- Support 2-ch HDMI, 2-ch VGA, HMDI1 at up to 4K(3840x2160) resolution
- Up to 64 IP cameras can be connected with 320M incoming bandwidth
- Up to 8 SATA interfaces
- Support HDD hot swap with RAID0,1,5,6,10 storage scheme configurable
- Support various VCA detection alarm and VCA search
- Support H.265/H.264/MPEG4 video formats
Teknik Özellikler
Video / Ses Girişi | |
İki Yönlü ses girişi | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
IP Video girişi | 16-ch |
Network | |
Incoming bandwidth | 256Mbps or 200Mbps(when RAID is enabled) |
Outgoing bandwidth | 256Mpbs or 200Mbps(when RAID is enabled) |
Uzak Bağlantı | 128 |
Video/Audio Output | |
HDMI/VGA output | 2-ch, resolution: |
HMDI1/VGA1:HDMI1: 4K (3840 × 2160)/60Hz, | |
4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
HDMI2/VGA2:1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Ses Çıkışı | 2-ch, RCA (2.0Vp-p, 1KΩ) |
Senkronize Yeniden Oynatma | 16-ch |
Decoding | |
Live view / Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Capability | 4-ch@8MP,16-ch@1080P |
Hard Disk | |
SATA | 8 SATA interfaces for 8 HDDs |
Arayüzü Türü | 1 eSATA interface |
Kabiliyeti | Up to 6TB capacity for each HDD |
Disk Dizisi | |
Dizisi türü | RAID0, RAID1, RAID5, RAID10 |
Dizisi sayısı | 4 |
Harici Arayüzü | |
Ağ Arayüzü | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces |
Seri bağlantı Arayüzü | RS-232, RS-485, Keyboard |
USB Arayüzü | Front panel: 2 × USB 2.0 |
Rear panel: 1 × USB 3.0 | |
Alarm iç | 16-ch |
Alarm dış | 4-ch |
General | |
Güç Kaynağı | 100 to 240 VAC, 50 to 60 Hz |
Tüketim (hard disk ve POE olmadan) | ≤30 W |
Çalışma Sıcaklığı | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
Çalışma Nem oranı | 10 % ~ 90 % |
Kasa | 19-inch rack-mounted 2U chassis |
Boyutlar | 445 × 470 ×90 mm (17.5"× 18.5" × 3.5") |
Ağırlık (HDD hariç) | ≤ 10 Kg (22 lb) |
Hikvision DS 9616NI I8 NVR Kayıt Cihazı Pdf Dosyası586.79 KB
