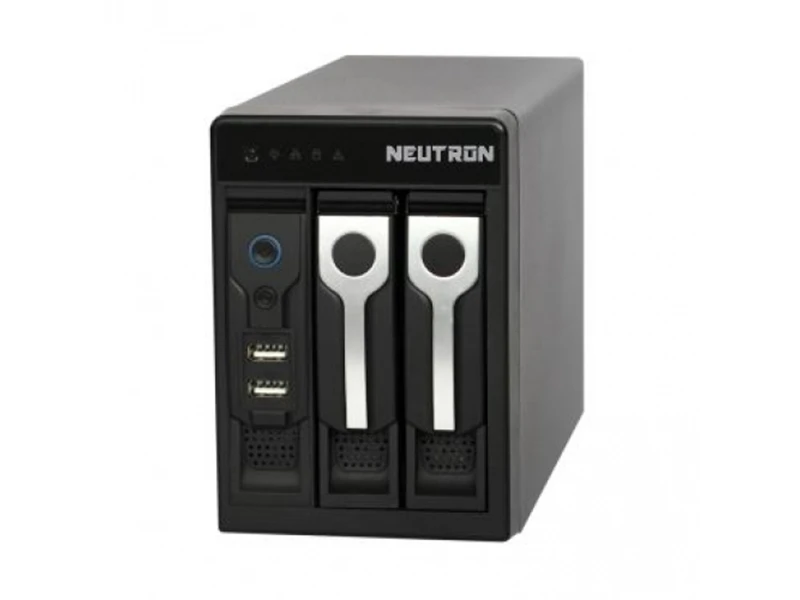

Neutron NVR3216V NVR Kayıt Cihazı

Özellikler

Up to 16 channel with 1080p realtime live view
H.264/MJPEG dual codec decoding
Max 120fps 1080p, 240fps 720p,480fps D1 preview & recording
All channel simultaneous realtime playback, GRID interface & smart search
Support Multi-brand network cameras: Neutron, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech and etc.
ONVIF Version 2.0 conformance
3D intelligent positioning with Neutron PTZ camera
Support 2 SATA HDDs up to 8TB, 1 eSATA up to 16TB, 3 USB2.0
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Teknik Özellikler

System
Main Processor	Dual-core embedded processor
Operating System	Embedded LINUX
Video & Audio
IP Camera Input	4 channel
Two-way Talk	1 channel Input, 1 channel Output, RCA
Display
Interface	1 HDMI, 1 VGA
Resolution	1920×1080, 1280×1024, 1280×720, 1024×768
Display Split	1.4
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression	H.264 / MPEG4
Resolution	1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)
Record Rate	400/480fps D1, 200/240fps 720P , 100/120fps 1080P>
Bit Rate	48 ~ 8192kbps
Record Mode	Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval	1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events	Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Video Detection	Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input	3 channel
Relay Output	1 channel
Playback & Backup
Sync Playback	1 / 4 / 9
Search Mode	Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode	USB Device / eSATA Device / Network
Network
Ethernet	RJ-45 port (10/100M/1000M)
PoE	4 ports (IEEE802.3af)
Network Function	HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS etc)
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Storage
Internal HDD	2 SATA ports, up to 8TB
External HDD	1 eSATA port (Max 4 SATA HDDs), up to 16TB
Auxiliary Interface
USB Interface	3ports (1 Rear), USB2.0
RS232	1 port, For PC communication & Keyboard
RS485	1 port, For PTZ control
General
Power Supply	NVR: DC12V
Power Supply	PoE Switch: DC48V
Power Consumption	NVR: 20W(without HDD)
Power Consumption	PoE Port: Max.15 (each)
Working Environment	-10 ~+55°C / 10~90%RH / 86~106kpa
Dimension (W×D×H)	100mm×220mm×146mm
Weight	1.6KG(without HDD)
