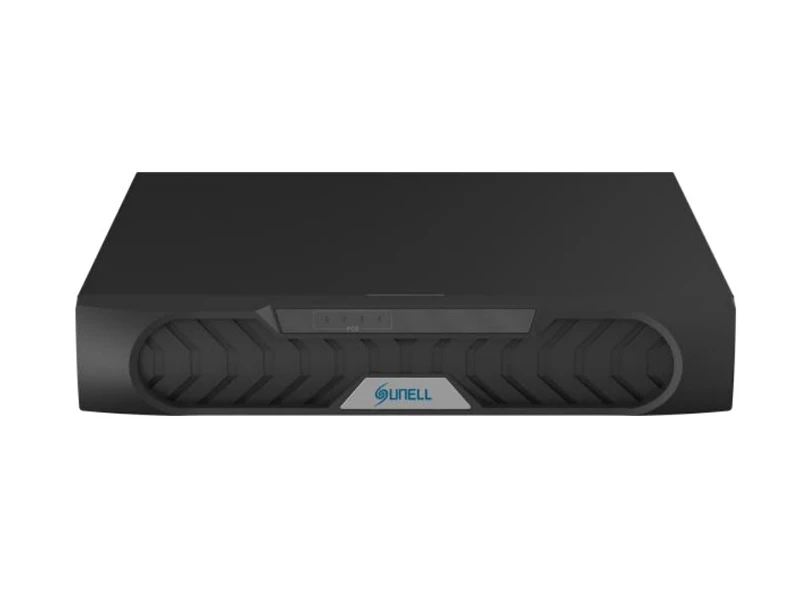

Sunell NVR10/01E3/016NSE NVR Kayıt Cihazı
Özellikler
- Up to 16ch 1080P IP cameras access
- Easy to use Same Interface of GUI/WEB/Client
- 1 SATA hard disk up to 6TB
- 1 RJ45 10M/100M/1000M network interface
- Simultaneous HDMI&VGA up to 1080P output
- 2 x 2.0 USB Host
- Smart 1U
Teknik Özellikler
| VIDEO/AUDIO INPUT | |
| Video Input | 16ch |
| Incoming Bandwidth | 160Mbps ,(main stream128Mbps ,sub stream 32Mbps) |
| Outgoing Bandwidth | Total 80Mbps |
| Audio Input | G711_A/G711_U |
| VIDEO/AUDIO OUTPUT | |
| Live View/Playback/ Recording Resolution | 6MP/5MP/4MP/3MP/1080P/960P/720P/D1/VGA/CIF/QCIF |
| Frame Rate | 6MP/5MP/4MP/3MP@15fps; 1080P@30fps; |
| Live View/Playback Resolution | Live View: 16ch D1/4ch 1080P/1ch 6MP,@30fps |
| Playback: 4ch 1080P/1ch 6MP | |
| HDMI/VGA Output | 1920x1080/60Hz,1280x720/60Hz,1024x768/60Hz |
| Audio Output | 1ch,Line out |
| HARD DISK | |
| SATA HDD | 1 SATA interface for 1HDD |
| Mounting Mode | Embedded |
| Capacity | Up to 6TB for each disk |
| NETWORK | |
| Network Interface | 1 RJ45 10M/100M/1000M network interface |
| Protocol | RTP/RTCP,TCP/UDP,HTTP,DHCP,DNS,NTP |
| POE Interface | N/A |
| POE Max Power | N/A |
| INTERFACE | |
| HDMI/VGA | 1ch HDMI, 1ch VGA |
| USB | USB 2.0 x2 |
| Audio I/O | 1ch MIC in,1ch audio line out |
| Alarm I/O | N/A |
| Reset Button | Yes |
| GENERAL | |
| Power Supply | DC 12V ,Max Input 24W |
| Power Consumption | Max 10W(without HDD,USB) |
| OperatingTemperature | -10°C ~ 45°C (14°F ~ 113°F ) |
| Operating Humidity | 0% - 90% RH |
| Chassis | Smart 1U |
| Product Dimensions | 255x235x47.5mm |
| Product Weight | 870g |
