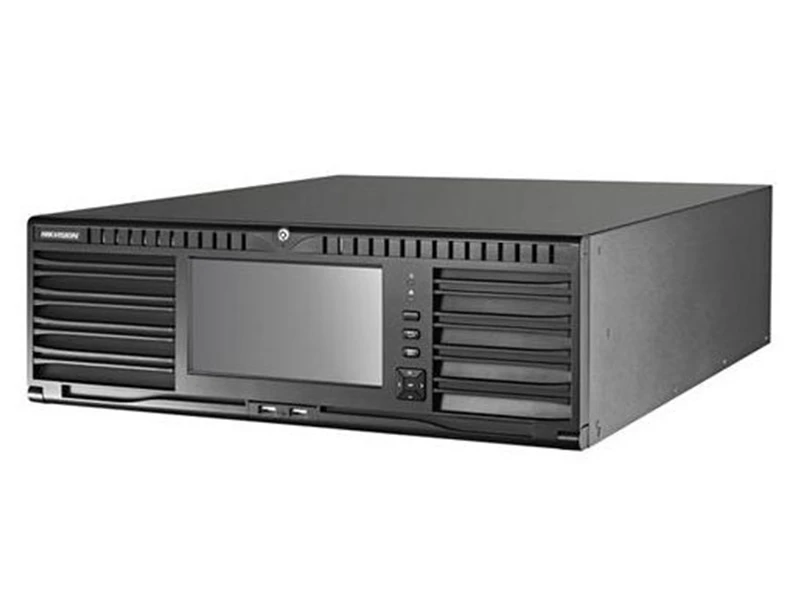

Hikvision DS 96256NI I16 H NVR Kayıt Cihazı
Özellikler
- Third-party network cameras supported
- Up to 12 Megapixels resolution recording
- Video outputs at up to 4K (4096*2160) resolution
- Supports decoding up to 20 channels at 1080P resolution
- Up to 128/256 IP cameras can be connected with
- 512M/768M incoming bandwidth
- Up to 24 SATA interfaces
- Supports H.264+,H.264,MPEG4,H.265,MJPEG video format
- Support redundant power supply to improve the system stability
- Support HDD hot swap with RAID0,1,5,6,10 storage scheme configurable
- Support various VCA detection alarm and VCA search
Teknik Özellikler
| Video / Ses Girişi | |
| İki Yönlü ses girişi | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| IP Video girişi | 256-ch |
| Network | |
| Incoming bandwidth | 768Mbps |
| Outgoing bandwidth | 768Mbps |
| Uzak Bağlantı | 256 |
| Video/Audio Output | |
| HDMI Output | 2-ch, resolution: 4K(4096*2160)/60Hz, 4K(3840*2160)/30Hz, 2K(2560*1440)/60HZ, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Ses Çıkışı | 1-ch, RCA (2.0Vp-p, 1KΩ) |
| VGA Çıkışı | 1-ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Decoding | |
| Live view / Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | Up to 116-ch@1080P |
| Hard Disk | |
| miniSAS (opsiyonel) | 2 miniSAS interface |
| eSATA | 1 eSATA interface |
| Kabiliyeti | Up to 8TB capacity for each HDD |
| Disk Dizisi | |
| Dizisi türü | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Dizisi sayısı | 8 |
| Harici Arayüzü | |
| Optik fiber arayüzü | 4 1000 Mbps optional optic fiber interfaces |
| Ağ Arayüzü | 4 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces |
| Seri bağlantı Arayüzü | RS-232, RS-485, Keyboard |
| USB Arayüzü | Front panel: 2 × USB 2.0 |
| Rear panel: 2 × USB 3.0 | |
| Alarm iç | 16-ch |
| Alarm dış | 4-ch |
| General | |
| Güç Kaynağı | 100-240 VAC, 550W |
| Tüketim (hard disk ve POE olmadan) | ≤ 140W |
| Çalışma Sıcaklığı | 0 ºC ~ +50 ºC (32ºF ~ 122ºF) |
| Çalışma Nem oranı | 10 % ~ 90 % |
| Kasa | 3U chassis |
| Boyutlar | 442 × 494 146 mm (17.4 × 19.4 5.7 inch) |
| Ağırlık (HDD hariç) | ≤16kg (35.3lb) |
Hikvision DS 96256NI I16 H NVR Kayıt Cihazı Pdf Dosyası730.68 KB
