Açıklama

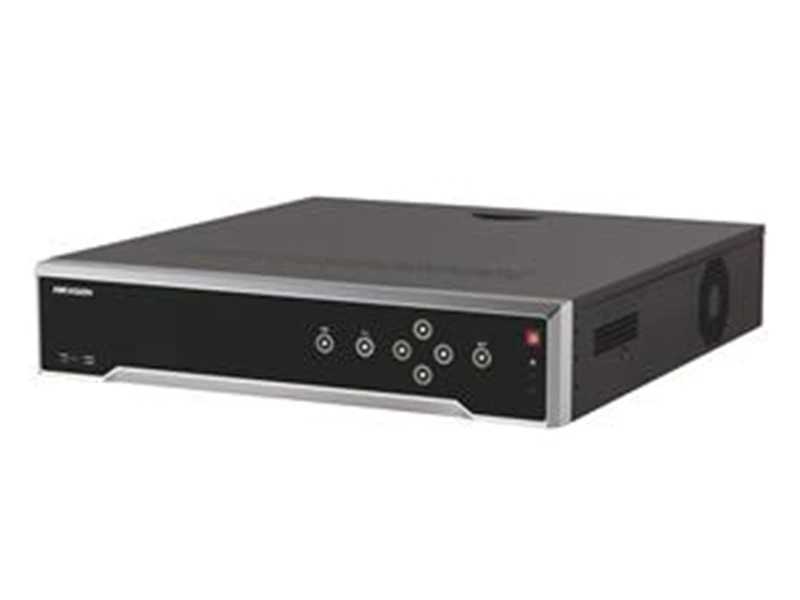

Haikon DS 7732NI K4 16P NVR Kayıt Cihazı
Özellikler
- Third-party network cameras supported
- Up to 8 Megapixels resolution recording
- Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
- 32-ch network cameras can be connected with
- 160M/256M incoming bandwidth
- Up to 4 SATA interfaces
- Plug & Play with up to 16 independent PoE network interfaces
- Support dual-os to ensure high reliablility of system running
- Support various VCA detection alarm and VCA search
- Support H.265/H.264/MPEG4 video formats
Teknik Özellikler
Video/Audio Input | |
IP video input: | 32-ch |
Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
Network | |
Incoming bandwidth: | 160Mbps |
Outgoing bandwidth: | 160Mbps |
Remote connection: | 128 |
Video/Audio Output | |
Recording Resolution: | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Audio Output: | 1-ch, RCA (Linear, 1kΩ) |
Synchronous Playback: | 16-ch |
VGA Output: | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Decoding | |
Live view / Playback: | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Capability: | 8-ch@1080P |
Hard Disk | |
SATA: | 4 SATA interfaces for 4HDDs |
Capacity: | Up to 6TB capacity for each HDD |
External Interface | |
Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
Serial Interface: | RS-232; RS-485; |
USB Interface: | Front panel: 2 × USB 2.0 |
Rear panel: 1 × USB 3.0 | |
Alarm In: | 16-ch |
Alarm Out: | 4-ch |
POE | |
Interface: | 16 independent 10/100 Mbps PoE Ethernet interfaces |
Max. Power: | 200W |
Supported Standard: | AF and AT |
General | |
Power Supply: | 100 to 240 VAC |
Consumption(without hard disk and POE): | ≤20 W |
Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
Working Humidity: | 10 % ~ 90 % |
Chassis: | 19-inch rack-mounted 1.5U chassis |
Dimensions: | 445 × 390 × 70 mm (17.5"× 15.3" × 2.8") |
Weight(without HDD): | ≤ 5 Kg (11 lb) |
Haikon DS 7732NI K4 16P NVR Kayıt Cihazı PDF Dosyası571.33 KB
