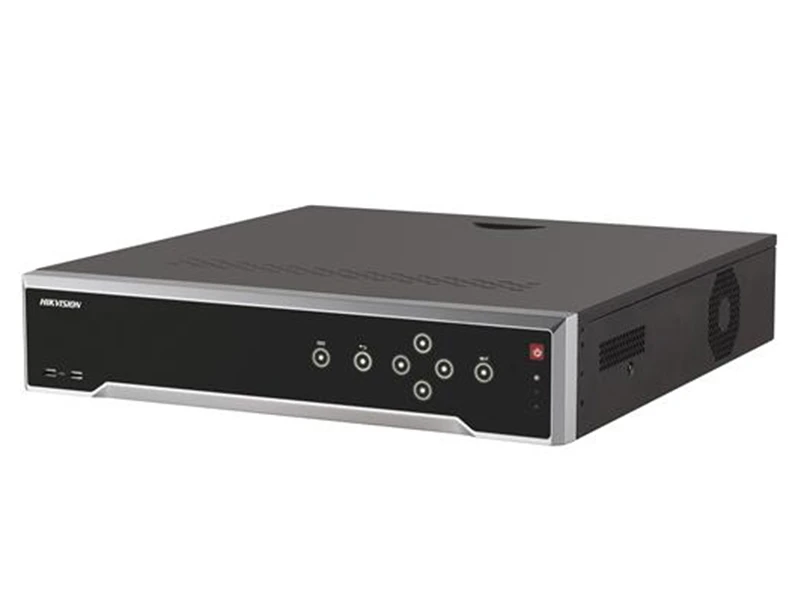

Haikon DS 7732NI K4 32 Kanal NVR Kayıt Cihazı
Özellikler
- 32 Kanal NVR (8MP kamera, 4K çıkış desteği)
- Çift işletim sistemi desteği
- H.265/H.264/MPEG4
- 8MP çözünürlüğe kadar kayıt desteği
- kayıt bant genişliği: 256Mbps
- İzleme bant genişliği: 160Mbps
- 1 x HDMI (4K, 2K, 1080p çıkış desteği)
- 1xVGA desteği (1080p)
- 1x Ses çıkışı
- kayıttan eş zamanlı oynatma: 16 kanal, 4 x SATA (6TB'a kadar)
- çift yönlü ses desteği
- ANR, 2xRJ45, 1xRS485, 1xRS232, 2xUSB 2.0, 1x USB 3.0
- Alarm girişi/çıkışı: 16/4
- Rack montaja uygun: 1.5U
Teknik Özellikler
| Video/Audio Input | |
| IP video input: | 32-ch |
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1k?) |
| Network | |
| Incoming bandwidth: | 256Mbps |
| Outgoing bandwidth: | 160Mbps |
| Video/Audio Output | |
| Recording Resolution: | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output: | 1-ch, RCA (Linear, 1k?) |
| Synchronous Playback: | 16-ch |
| VGA Output: | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Decoding | |
| Live view / Playback: | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability: | 8-ch@1080P |
| Hard Disk | |
| SATA: | 4 SATA interfaces for 4HDDs |
| Capacity: | Up to 6TB capacity for each HDD |
| External Interface | |
| Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| Serial Interface: | RS-232; RS-485; |
| USB Interface: | Front panel: 2 × USB 2.0 |
| Rear panel: 1 × USB 3.0 | |
| Alarm In: | 16-ch |
| Alarm Out: | 4-ch |
| General | |
| Power Supply: | 100 to 240 VAC |
| Consumption(without hard disk and POE): | ?20 W |
| Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity: | 10 % ~ 90 % |
| Chassis: | 19-inch rack-mounted 1.5U chassis |
| Dimensions: | 445 × 390 × 70 mm (17.5"× 15.3" × 2.8") |
| Weight(without HDD): | ? 5 kg (11 lb) |
Haikon DS 7732NI K4 32 Kanal NVR Kayıt Cihazı Pdf Dosyası619.63 KB
