Açıklama

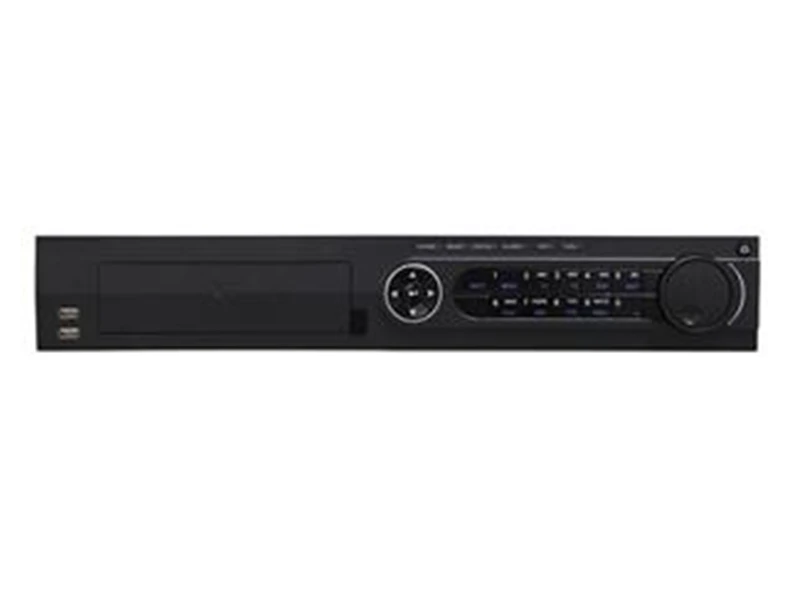

Haikon DS 7P32NI E4 16P NVR Kayıt Cihazı

Video/Audio Input
IP video input:	32-ch
Two-way audio input:	1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth:	160Mbps
Outgoing bandwidth:	80Mbps
Remote connection:	128
Video/Audio Output
HDMI/VGA output:	1-ch, resolution:
	1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,
	1024 × 768 /60Hz
Recording Resolution:	6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame Rate:	Main stream: 50 fps (P) / 60 fps (N)
	Sub-stream: 50 fps (P) / 60 fps (N)
POE
Interface:	16 independent 100 Mbps PoE network interfaces
Max. Power:	200W
Decoding
Live view / Playback:	6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability:	16-ch@4CIF, 12-ch@720P,
	6-ch@1080P
Hard Disk
SATA:	4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs
Capacity:	Up to 6TB capacity for each HDD
External Interface
Network Interface:	2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces
USB Interface:	Front panel: 2 × USB 2.0
	Rear panel: 1 × USB 3.0
Alarm In:	16-ch
Alarm Out:	4-ch
General
Power Supply:	100~240VAC
Consumption(without hard disk and POE):	≤ 20W
Working Temperature:	-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity:	10 % ~ 90 %
Chassis:	19-inch rack-mounted 1.5U chassis
Dimensions:	445 × 390 × 70mm (17.5 ×15.3 × 2.8 inch)
Weight(without HDD):	≤ 4 Kg (8.82 lb)
