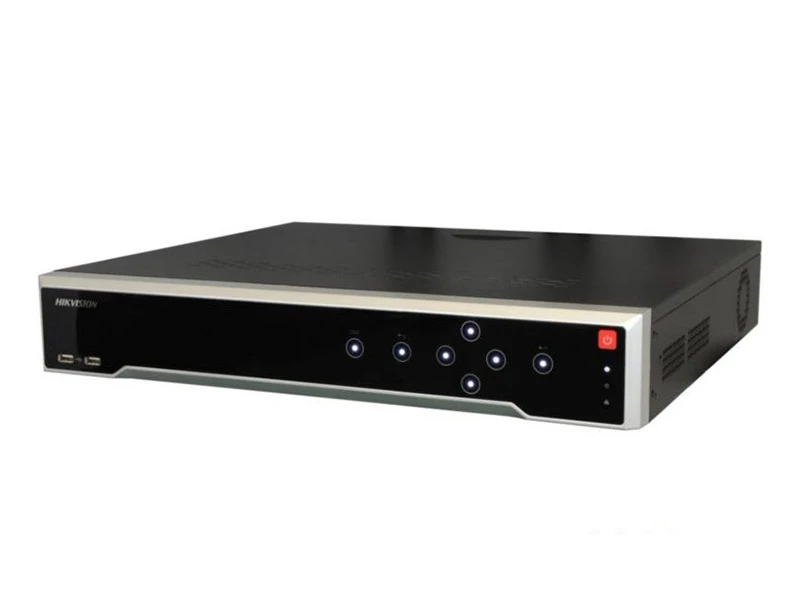

Hikvision DS 7732NI K4 NVR Kayıt Cihazı
Özellikler
- Third-party network cameras supported
- Up to 8 Megapixels resolution recording
- Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
- 16/32-ch network cameras can be connected with 160M/256M incoming bandwidth
- Up to 4 SATA interfaces
- Support dual-os to ensure high reliablility of system running
- Support various VCA detection alarm and VCA search
- Support H.265/H.264/MPEG4 video formats
Teknik Özellikler
Video / Ses Girişi | |
İki Yönlü ses girişi | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
IP Video girişi | 32-ch |
Network | |
Incoming bandwidth | 256Mbps |
Outgoing bandwidth | 160Mbps |
Uzak Bağlantı | 128 |
Video/Audio Output | |
HDMI Output | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Ses Çıkışı | 1-ch, RCA (Linear, 1kΩ) |
Senkronize Yeniden Oynatma | 16-ch |
VGA Çıkışı | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Decoding | |
Live view / Playback | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Capability | 8-ch@1080P |
Hard Disk | |
SATA | 4 SATA interfaces for 4HDDs |
Kabiliyeti | Up to 6TB capacity for each HDD |
Harici Arayüzü | |
Ağ Arayüzü | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces |
Seri bağlantı Arayüzü | RS-232; RS-485; |
USB Arayüzü | Front panel: 2 × USB 2.0 |
Rear panel: 1 × USB 3.0 | |
Alarm iç | 16-ch |
Alarm dış | 4-ch |
General | |
Güç Kaynağı | 100 to 240 VAC |
Tüketim (hard disk ve POE olmadan) | ≤20 W |
Çalışma Sıcaklığı | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
Çalışma Nem oranı | 10 % ~ 90 % |
Kasa | 19-inch rack-mounted 1.5U chassis |
Boyutlar | 445 × 390 × 70 mm (17.5"× 15.3" × 2.8") |
Ağırlık (HDD hariç) | ≤ 5 Kg (11 lb) |
Hikvision DS 7732NI K4 NVR Kayıt Cihazı Pdf Dosyası571.02 KB
