Açıklama

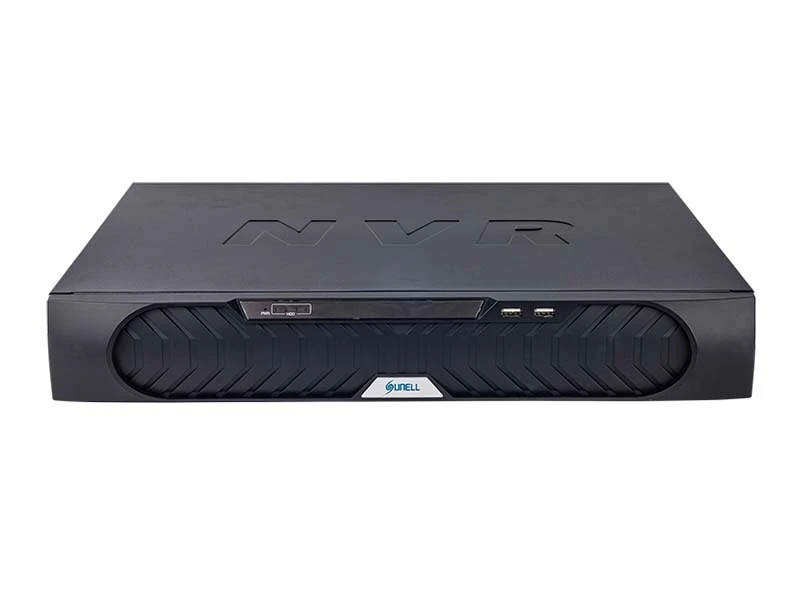

032NSHP16 NVR Kayıt Cihazı

Özellikler

Up to 32ch IP cameras access
Easy to use Same Interface of GUI/WEB/Client
4 SATA hard disk each up to 8TB
1 RJ45 10M/100M/1000M network interface
16ch POE Ports
Simultaneous HD-OUT&VGA ,up to 4Koutput
2 x 2.0&1x3.0 USB Host
1ch Audio I/O 2ch Alarm input/output

Teknik Özellikler

System
Main Processor	Dual-core embedded processor
Operating System	Embedded LINUX
Audio and Video
IP Camera Input	32 Channel
Two-way Talk	1ch input, 1ch output
Display
Interface	1 HD-OUT, 1 VGA
Resolution	HD-OUT 1: 1920×1080,1280×720, 1024×768
	HD-OUT 2: 3840×2160,1920×1080,1280×720, 1024×768
	VGA: 1920×1080, 1280×1024, 1280×720
Decoding Capacity	32ch 720P/16ch 1080P/8ch 4MP/4ch 8MP@30fps, 1ch 12MP @20fps
Multi-screen Display	1/4/9/16/32
Recording
Compression	H.265/H.264
Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080P/720P/D1&etc.
Record Rate	256Mbps
Bit Rate	100Kbps ~ 8Mbps Per Channel
Record Mode	Manual, Schedule (Regular, Continuous), Motion Detection, Video Loss, Alarm in
Record Interval	Post-record: 0 ~ 86400 sec
Video Detection and Alarm
Trigger Events	Recording, Push message, Pop up message
Video Detection	Motion Detection, Video Loss
Alarm In/Out	2/2
Playback and Backup
Sync Playback	1/4/9/16
Search Mode	Time /Date, Alarm
Playback Function	Play, Pause, Back 10s, Single Frame Forward, Slow Play /Fast play, Full Screen, Shuffle, Backup Selection, Digital Zoom
Backup Mode	USB Device
Network
Interface	1 RJ-45 port (10/100/1000Mbps)
PoE Interface	16ch 100Mbps, IEEE802.3af/802.3at
PoE Max Power	140W
Network Function	HTTP, IPv4, TCP/IP, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, PPPoE, SNMP
Optical Fiber Interface	N/A
Max. User	Access 8 users
Smart Phone	iPhone, iPad, Android
Interoperability	ONVIF 2.4, SDK, CGI
Storage
Internal HDD	4 SATA Ports, up to 8TB for each HDD
Mounting Mode	Embedded
eSATA	Support
Interface
USB	3 ports (USB 2.0 x2, USB3.0 x1)
RS232	N/A
RS485	N/A
Audio I/O	1ch MIC in, 1ch Audio line out
Reset Button	Support
General
Power Supply	AC100-240V
Power Consumption	< 15W (without HDD)
Operating Conditions	-10 °C ~ 45 °C (14 °F ~ 113 °F)
Storage Conditions	Less than 90% RH
Certifications	CE/FCC
Dimensions	440×383.6×70mm
Net Weight	4.4kg (No disk)
