Açıklama

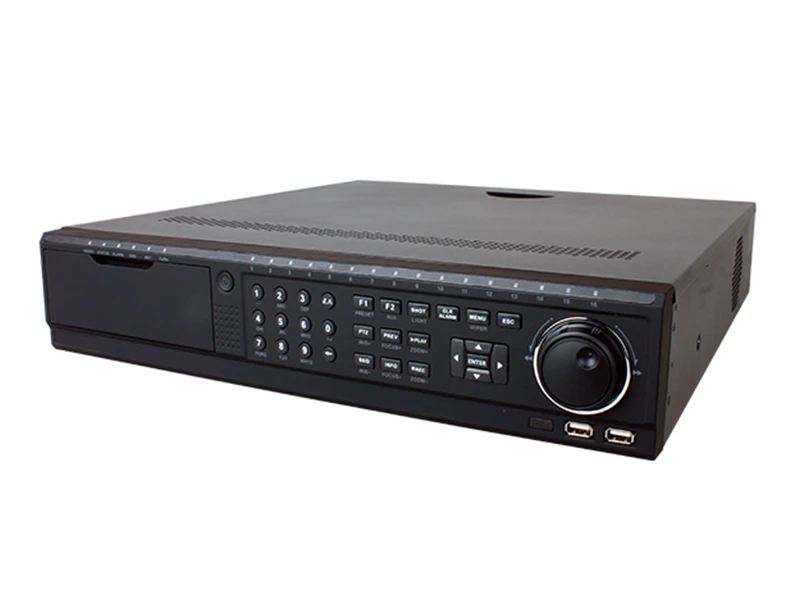

Tiandy TC NR4032M7 S8 Nvr Kayıt Cihazı
Özellikler
- 32-ch 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF IP Camera Input
- 8-ch 1080P/16-ch 720P/32-ch 4CIF Realtime Display
- 32-ch Sub-stream 4CIF Realtime Display
- 8-ch 1080P/16-ch 720P Sync Playback
- Up to 6MP Resolution Recording
- Bandwidth in/out 200Mbps/120Mbps
- 2xHDMI, Diffierent Video Source
- HDD Quota and Group Management
- Dual Gigabit Network Interfaces
- Support 32-ch Intelligent Analysis Process
- Smart Search&Recording, Plug&Play
- 8 SATA(Up to 64TB), Alarm I/O 16/4, Audio I/O 1/2, 3xUSB
- CE, FCC
Teknik Özellikler
| Specification | |
| Video/Audio Input | |
| IP video input | 32-ch |
| Two-way Audio Input | 1-ch, BNC(2.0 Vp-p, 1kΩ) |
| Network | |
| Incoming Bandwidth | 200Mbps |
| Outgoing Bandwidth | 120Mbps |
| Remote Connection | 32 Users, Up to 48ch Videos |
| Browser | IE8,IE9,IE10,IE11,Firefox24 |
| Mobile Software | P2P&DDNS for IOS&Android (Tiandy: Easylive, Neutral: Mobilelive) |
| Internet Protocol | TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/HTTPS/RTSP/SMTP/HTTPS/SNMP |
| Activated by Alarm | |
| ANR | Y, Auto download video from camera SD card, Which was stored when disconnnection (Only Support Tiandy ANR IP Camera) |
| Advanced | Remaining Bandwidth Display |
| Video/Audio Output | |
| CVBS Output | 1-ch, BNC(1.0Vp-p, 75Ω) |
| Resolution 704×576(PAL); 704×480(NTSC) | |
| HDMI Output | 2-ch Resolution:1920×1080，1280×720，800×600,1024×768,1366×768,1440×900,1280×800 |
| VGA Output | 1-ch Resolution: 1920×1080，1280×720，800×600,1024×768，1366×768,1440×900,1280×800
Adjustable Output mode, Self-adaptive Resolution |
| Frame Rate | Mainstream 25fps(P)/30fps(N)
Substream 25fps(P)/30fps(N) |
| I-Frame Record | Y |
| Recording Resolution | |
| Audio Output | 2-ch, BNC(Linear Electrical Level, 600Ω) |
| Synchronous Playback | 8-ch 1080P/16-ch 720P/4CIF |
| Decoding | |
| Live View/Playback | 6MP(2752*2208,3008*2008,2408*2008)/
5MP(2448*2048,2560*1920,2592*1944,2592*1920,2528*2128/
4MP(2560*1440,2592*1520)/
3MP(2048*1536)/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | 1-ch 6MP/5MP/4MP/4-ch 3MP/8-ch 1080P/16-ch 720P/32-ch 4CIF |
| Display Split | 1/4/6/8/9/16/25/36 |
| E-Zoom | Y |
| Hard Disk | |
| SATA | 8 SATA for 8 HDDs |
| eSATA | Y, Only for Backup |
| Capacity | Up to 8TB Capacity for Each HDD |
| NTFS Files System | Y |
| HDD Management | Group and Quota |
| External Interface | |
| Network Interface | 2 RJ-45 10/100/1000Mbps Self-adaptive Ethernet Interfaces |
| Serial Interface | 2 RS-485, Keyboard |
| USB Interface | 2 x USB2.0,1x USB3.0 |
| Alarm In | 16-ch |
| Alarm Out | 4-ch |
| Advance | |
| NAS | NFS Protocol, Support Manual Backup Only |
| Plug and Play | Y, Only for Tiandy Cameras |
| Corridor Mode | Y, 16:9 to 9:16, Only for Tiandy Cameras |
| Video Analytics(VCA) | Support 32-ch Camera VCA Function,Including Tripwire/Double Tripwire/
Perimeter/Object Abandon/Object Lost/Running/Loitering/Parking/Early Warning/Crowd/Face Detection/People Counting/Audio Abnormal Detection/Video Abnormal Detection/On duty Detection |
| Smart Search | Quickly Search Target VCA Videos , Only for Tiandy Cameras |
| Trigger Recording | Manual/Timing/Motion Detection/Port Alarm/VCA/Video Occlusion |
| Smart Recording | Set Different Recording Bite Rate for Different Time |
| Alarm Recording | Pre Alarm Default 10s ( 5/10/15/60s Optional) , Post Alarm Default 10s (10/15/30/60/600s Optional ). |
| Records Format | SDV, Export MP4 in H.264 Format |
| Onvif | Onvif(Profile S) |
| General | |
| Languge | English, Spanish, Korean, Italian,Turkish,Thai, Russian, Traditional Chinese, Simplified Chinese,French, Polish |
| Power Supply | 100 ~ 240V AC, 6.3A, 50 ~ 60Hz |
| Consumption(without HDD) | ≤ 44 W |
| Working Temperature | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity | 10 % ~ 90 % |
| Chassis | 19-inch Rack-mounted 2U Chassis |
| Dimensions | 89mm×440mm×472mm |
| Weight | 7.2KG (without HDD), 9.8KG (with Packing Box) |
