Açıklama

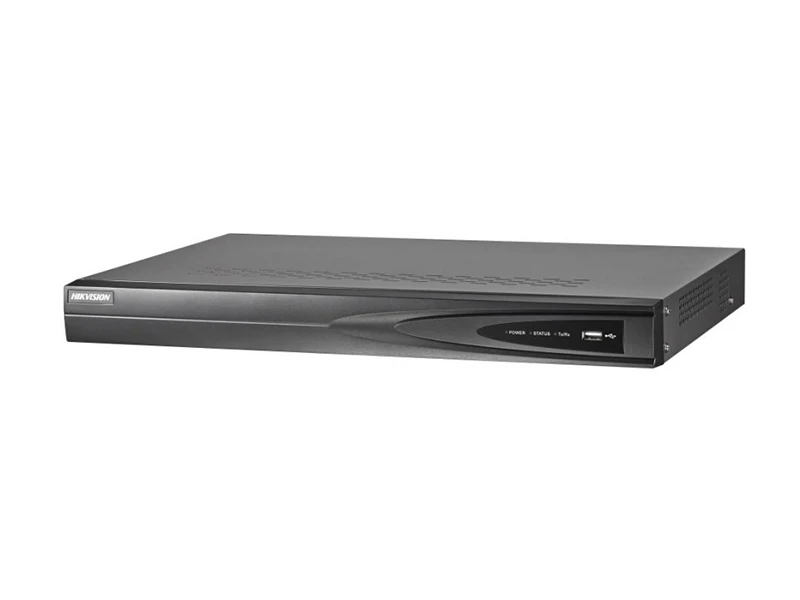

Hikvision DS 7R04NI K1/4P NVR Kayıt Cihazı
Özellikler
- Third-party network cameras supporte
- Up to 8 Megapixels resolution recording
- Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
- 4-ch network cameras can be connected with 40M/60M/80M incoming bandwidth
- Support dual-os to ensure high reliablility of system running
- Plug & Play with up to 4 independent PoE network interfaces
- Support various VCA detection alarm and VCA search
- Support H.265/H.264/MPEG4 video formats
Teknik Özellikler
| Video / Ses Girişi | |
| İki Yönlü ses girişi | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| IP Video girişi | 4-ch |
| Network | |
| Incoming bandwidth | 40Mbps |
| Outgoing bandwidth | 80Mbps |
| Video/Audio Output | |
| HDMI Output | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Ses Çıkışı | 1-ch, RCA (Linear, 1kΩ) |
| VGA Çıkışı | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Decoding | |
| Live view / Playback | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | 4-ch@1080P |
| Hard Disk | |
| SATA: | 1 SATA interface for 1 HDD |
| Kabiliyeti | Up to 6TB capacity for each HDD |
| Harici Arayüzü | |
| Ağ Arayüz | 1 RJ-45 10 / 100 Mbps selfadaptive |
| Ethernet interface | |
| USB Arayüzü | 2, USB2.0 |
| POE | |
| Arayüzü | 4 independent 10 /100 Mbps PoE |
| Ethernet interfaces | |
| General | |
| Güç Kaynağı | 48 VDC |
| Tüketim (hard disk ve POE olmadan) | ≤ 10 W |
| Çalışma Sıcaklığı | 0 ºC ~ +40 ºC (+32 ºF ~ +104 ºF) |
| Çalışma Nem oranı | 10 % ~ 90 % |
| Kasa | 315 mm chassis |
| Boyutlar | 315 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
| Ağırlık (HDD hariç) | ≤ 1 kg (2.2 lb) |
Hikvision DS 7R04NI K1/4P NVR Kayıt Cihazı Pdf Dosyası676.64 KB
