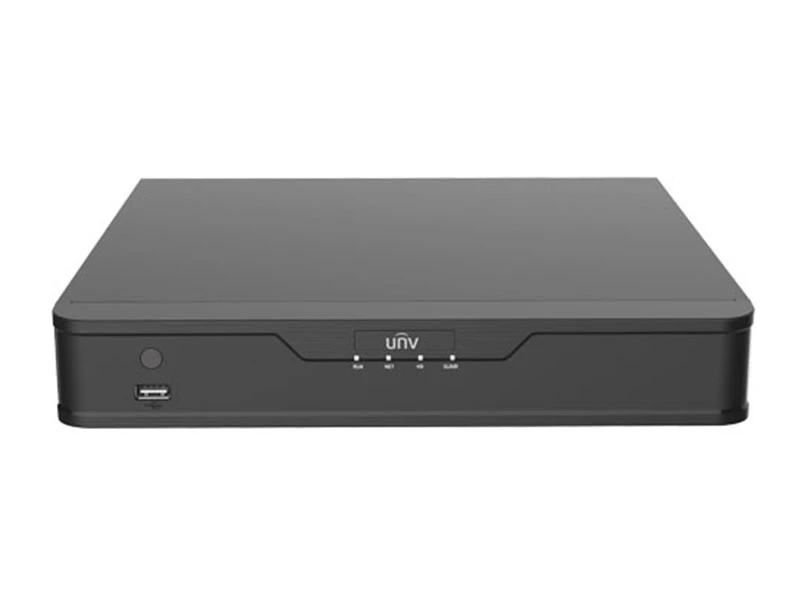

Uniview NVR201 04U NVR Kayıt Cihazı
Özellikler
- Support H.264 video formats
- Support AHD, TVI, CVI,CVBS, IP cameras with adaptive access
- 4/8-channel BNC input
- Up to 5MP resolution for recording
- Support 1-ch HDMI, 1-ch VGA output at up to 1920*1080P
- Long transmission distance over coax cable
Teknik Özellikler
| Model | NVR201-04U | NVR201-08Q |
| Video/Audio Input | ||
| Analog Video Input | 4-ch, BNC | 8-ch, BNC |
| IP Video Input | 2-ch (only IP up to 6ch) | 2-ch (only IP up to 10ch) |
| Supported Analog Camera Types | Support AHD input: | Support AHD input: |
5MP, 4MP, 3MP, 1080P/30 Hz，
1080P/25 Hz, 720P/30 Hz,720P/25 Hz, | 3MP,1080P/30 Hz,
1080P/25 Hz，720P/25 Hz, 720P/30 Hz | |
| Support TVI input: | Support TVI input: | |
| 5MP,3MP,1080P/30 Hz, 1080P/25 Hz, | 3MP,1080P/30 Hz,
1080P/25 Hz 720P/25 Hz,720P/30 Hz | |
| 720P/30 Hz,720P/25 Hz | Support CVI input: | |
| Support CVI input: | 1080P/25Hz, 1080P/30Hz, 720P/25Hz,720P/30Hz | |
| 1080P/25Hz, 1080P/30Hz, 720P/25Hz,720P/30Hz | Support CVBS input | |
| Support CVBS input | ||
| Audio Input | 4-ch, RCA | |
| Two-way Audio Input | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 40Mbps | |
| Outgoing Bandwidth | 40Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| CVBS Output | / | 1-ch, BNC |
| HDMI/VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz,
1600x1200/60Hz, 1280x1024/60Hz,
1280x720/60Hz, 1024x768/60Hz | |
| Recording Resolution | 5MP/4MP/3MP/1080p/720p/960H/4CIF/CIF/QCIF | |
| Frame Rate | Mainstream: | Main stream: |
5MP@10fps/4MP@12fps/3MP@16fps/
1080P@25fps/720P@30fps/960H@30fps | 3MP@8fps/1080p@12fps/
720@30fps/960H@30fps | |
| Sub stream: 960H/D1@16fps | Sub stream: 960H/D1@12fps | |
| CIF/QCIF@25fps/30fps | CIF/QCIF@25fps/30fps | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 6-ch | 10-ch |
| Decoding | ||
| Decoding format | H.264 | |
| Live View/ Playback | 8MP(IP)/5MP/4MP/3MP
/1080p/720p/960H/4CIF/CIF/QCIF | 8MP(IP)/3MP/1080p/720p/
960H/4CIF/CIF/QCIF |
| Hard Disk | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 8TB for each HDD | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interfaces | |
| Serial Interface | 1 x RS485 | |
| USB Interface | Rear panel：1 x USB2.0,Front panel：1xUSB2.0 | |
| General | ||
| Power Supply | 12V DC | |
| Power Consumption: ≤ 5 W( without HDD ) | ||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ),
Humidity ≤ 90% RH(non-condensing) | |
| Dimensions(W×D×H) | 260mm × 240mm× 44mm (10.2" × 9.4"×1.7") | |
| Weight ( without HDD ) | ≤ 1.12 Kg ( 2.47 lb ) | |
