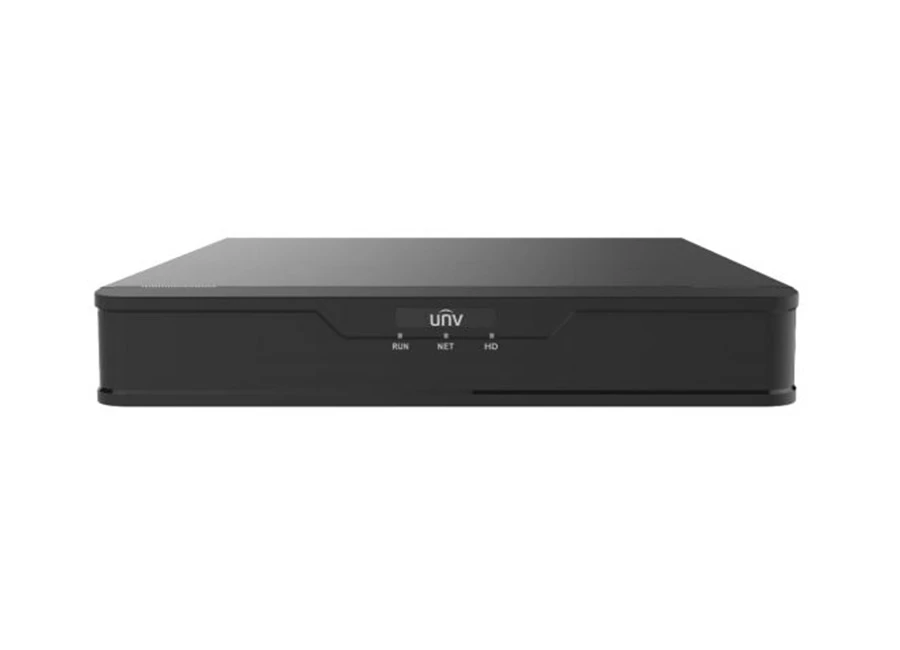

Uniview NVR301 04X NVR Kayıt Cihazı

Support Ultra 265/H.265/H.264 video formats
4/8/16-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI, 1-ch VGA
HDMI and VGA simultaneous output
Up to 4K resolution recording
1 SATA HDD up to 10 TB
Support cloud upgrade

Model	NVR301-04X	NVR301-08X	NVR301-16X
Video/Audio Input
IP Video Input	4-ch	8-ch	16-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming Bandwidth	64Mbps
Outgoing Bandwidth	64Mbps
Remote Users	128
Protocols	P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output	HDMI:
	3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
	VGA:
	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution	4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback	4-ch	8-ch	16-ch
Corridor Mode Screen	3.4	3/4/5/7/9	3/4/5/7/9/10/12/16
Decoding
Decoding format	Ultra 265/H.265/H.264
Liveview/Playback	4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30, 16 x 720p@30
Hard Disk
SATA	1 SATA interface
Capacity	up to 10TB for each disk
External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 1 x USB2.0,1 x USB3.0
General
Power Supply	12V DC
	Power Consumption: ≤8 W (without HDD)
Working Environment	-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)	260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
Weight (without HDD)	1.3kg (2.87 lb)
