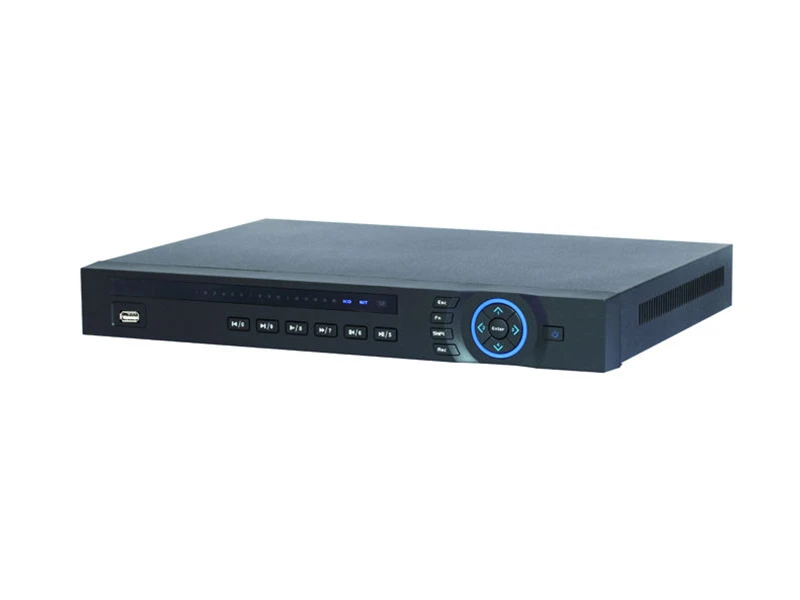

Dahua DH NVR7264 NVR Kayıt Cihazı
Özellikler
- Up to 64 channel with 1080p realtime live view
- H.264/MJPEG dual codec decoding
- Max 256Mbps incoming bandwidth
- HDMI / VGA simultaneous video output
- 8/16/32channel synchronous realtime preview, GRID interface
- Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon,
- CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
- ONVIF Version 2.2 conformance
- 3D intelligent positioning with Dahua PTZ camera
- Support 2 SATA HDDs up to 8TB, 2 USB2.0
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Teknik Özellikler
System | |
Main Processor | Dual-core embedded processor |
Operating System | Embedded LINUX |
Video & Audio | |
IP Camera Input | 64 channel |
Two-way Talk | 1 channel Input, 1 channel Output, RCA |
Display | |
Interface | 1 HDMI, 1 VGA |
Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 |
Display Split | 1/4/8/9/16/25/36 |
OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
Recording | |
Compression | H.264 / MJPEG |
Resolution | 1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) & etc. |
Record Rate | 192Mbps |
Bit Rate | 48~ 8192kbps |
Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
Video Detection & Alarm | |
Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
Alarm Input | 8 channel |
Relay Output | 3 channel |
Playback & Backup | |
Sync Playback | 1/4/9/16 |
Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
Backup Mode | USB Device / Internal SATA burner/ Network |
Network | |
Ethernet | 1 RJ-45 port (10/100/1000Mbps) |
Network Function | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
Max. User Access | 128 users |
Smart Phone | iPhone, iPad, Android, Windows Phone |
Storage | |
Internal HDD | 2 SATA ports (2HDDs), up to 8TB |
Auxiliary Interface | |
USB | 2 ports (1 Rear), USB2.0 |
RS232 | 1 port, For PC communication & Keyboard |
RS485 | 1 port, For PTZ control |
General | |
Power Supply | DC 12V/5A |
Power Consumption | 60W (without HDD) |
Working Environment | -10°C~+55°C / 10%~90%RH / 86~106kpa |
Dimension | 1U, 375mm×285mm×50mm |
(W×D×H) | |
Weight | 2.3KG (without HDD) |
