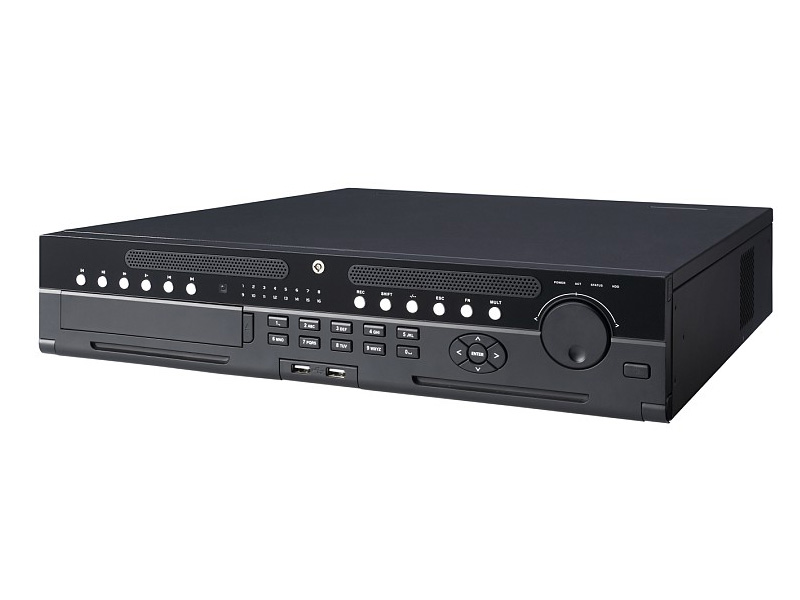

Dahua NVR608 64 4K NVR Kayıt Cihazı
Özellikler
- Max 64 channel IP cameras connection
- Max 384Mbps incoming bandwidth
- Up to 12Mp resolution preview& playback
- 1 VGA+2 HDMI
- 8 hot-swap HDDs
- RAID 0/1/5/6/10/50/60
- N+M hot standby
- iSCSI to expand storage space
- Compatible with Dahua SDK and seamless integrated to other platforms
- Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
- ONVIF Version 2.4 conformance
Teknik Özellikler
System | ||
Main Processor | Intel Processors | |
Operating System | LINUX | |
Video& Audio | ||
IP Camera Input | 64 channel | |
Two-way Talk | 1channel Input, 1channel Output, RCA | |
Display | ||
Interface | 2 HDMI (up to 3840×2160), 1 VGA | |
Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 | |
Multi-screen Display | The 1st screen: 1/4/8/9/16/25/36 | |
The 2nd screen: 1/4/8/9/16 | ||
OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
Recording | ||
Compression | H.264/MJPEG | |
Resolution | 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc. | |
Record Rate | 256Mbps | |
Bit Rate | 1~ 20Mbps | |
Record Mode | Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop | |
Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |
Video Detection & Alarm | ||
Trigger Events | Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips | |
Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |
Alarm Input | 16ch, low level effective, green terminal interface | |
Relay Output | 8ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface | |
Playback & Backup | ||
Playback | 128Mbps in Raid 5 mode 64Mbps in single HDD mode | |
Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | |
Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |
Backup Mode | USB Device/Network/Internal SATA burner/eSATA Device | |
Network | ||
Interface | 2 RJ-45 ports (10/100/1000Mbps) | |
Ethernet Port | 2 Ethernet ports joint working or 2 independent 1000Mbps Ethernet ports | |
Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) | |
Max. User Access | 128 users | |
Smart Phone | iPhone, iPad, Android, Windows Phone | |
Storage | ||
Internal HDD | 8 SATA III ports, up to 48TB | |
HDD Mode | Single, Raid 0/1/5/6/10/50/60 (Support global HDD hot-spare) | |
Auxiliary Interface | ||
USB | 4 USB ports(3 USB2.0, 1 USB3.0) | |
eSATA | 1 eSATA port | |
RS232 | 1 port, For PC communication& keyboard | |
RS485 | 1 port, For PTZ control | |
General | ||
Power Supply | AC110V~240V, 50~60Hz | |
Power Consumption | ||
Working Environment | -10°C~+55°C/10%~90%RH/86~106kpa | |
Dimension(W×D×H) | 486mm(with ears)×454.9mm ×91mm | |
Weight | 9kg (without HDD) | |
Installation | 19” Rack-mounted |
Dahua NVR608 64 4K NVR Kayıt Cihazı Pdf Dosyası307.25 KB
