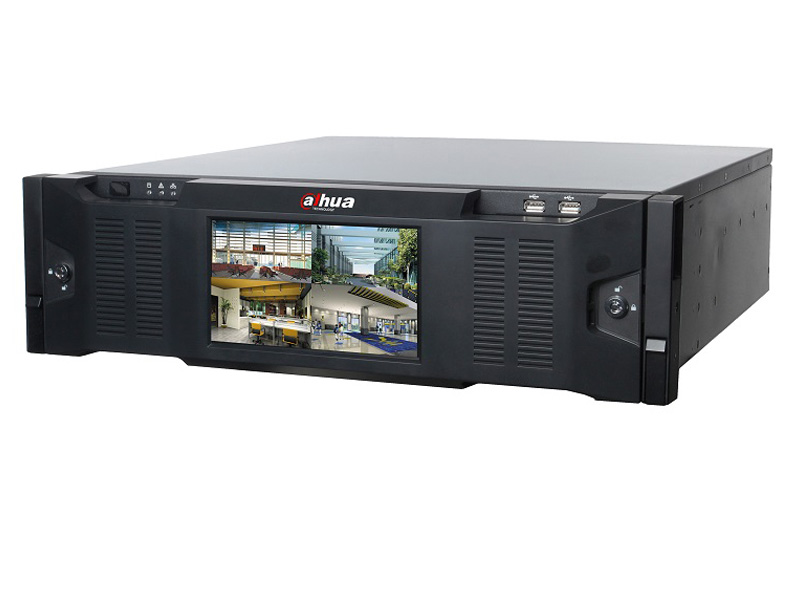

Dahua NVR616DR 64 4K NVR Kayıt Cihazı
Özellikler
- 64 Kanal Ultra HD 3U Super NVR
- 64 Kamera 12MP e Kadar Önizleme&Kayıt ve Oynatma,
- 384Mbps Band Genişliği, H.265/H.264/MJPEG Codec,
- RAID 0/1/5/6/10/50/60, 4xRJ45(1000M),
- 16/8xAlarm, 1/1xSes, 1xeSATA, 1xRS485,
- Optik Fiber Arayüzü (2G), 1xRS232,
- 1xMini SAS, 2xHDMI/1xVGA Eş Zamanlı Video Çıkışı,
- Çoklu Network Görüntüleme,
- 96 TB'a kadar 16 Sata III HDD Hot- Swap,
- N+M Hot Standby, iSCSI, 4xUSB, AC100-240V,
- 7"inch 1080p Full HD LCD Ekran,
- Yedek Güç Kaynağı Modülü
Teknik Özellikler
System | |
Main Processor | Intel Processors |
Operating System | LINUX |
Video & Audio | |
IP Camera Input | 64 channel |
Two-way Talk | 1channel Input, 1channel Output, RCA |
Display | |
Interface | 2 HDMI (up to 3840x2160), 1 VGA |
Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
Multi-screen Display | The 1st screen: 1/4/8/9/16/25/36 |
The 2nd screen: 1/4/8/9/16 | |
OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
Recording | |
Compression | H.265/H.264/MJPEG |
Resolution | 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc. |
Record Rate | 384Mbps |
Bit Rate | 1~ 20Mbps |
Record Mode | Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop |
Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
Video Detection & Alarm | |
Trigger Events | Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips |
Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
Alarm Input | 16ch, low level effective, green terminal interface |
Relay Output | 8ch, Relay contact(1A @ 24VDC), NO/NC programmable, green terminal interface |
Playback & Backup | |
Playback | 128Mbps in Raid 5 mode |
64Mbps in single HDD mode | |
Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
Backup Mode | USB Device/Network/Internal SATA burner/eSATA Device |
Network | |
Interface | 4 RJ-45 ports (10/100/1000Mbps) |
Ethernet Port | 4 Ethernet ports joint working or 4 independent 1000Mbps Ethernet ports |
Optical Fiber Interface | 2 Giga Optical fiber interface |
Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) |
Max. User Access | 128 users |
Smart Phone | iPhone, iPad, Android, Windows Phone |
Storage | |
Internal HDD | 16 SATA III ports, up to 96TB |
HDD Mode | Single, Raid 0/1/5/6/10/50/60 (Support global HDD hot-spare) |
Auxiliary Interface | |
Front cover | Support hot swap, 7" inch HD LCD (1920x1080/1280x1024/1024x768) (Model –D&DR) |
USB | 4 USB ports(3 USB2.0, 1 USB3.0) |
eSATA | 1 eSATA port |
SAS | 1 Mini SAS port |
RS232 | 1 port, For PC communication& keyboard |
RS485 | 1 port, For PTZ control |
General | |
Power Supply | AC100V~240V, 50~60Hz , Redundant |
Power Consumption | |
Working Environment | -10°C~+55°C/10%~90%RH/86~106kpa |
Dimension(W×D×H) | 531.9mm ×485mm(with ears)×133.2mm |
Weight | 17.45kg (without HDD) |
Installation | Rack-mounted |
