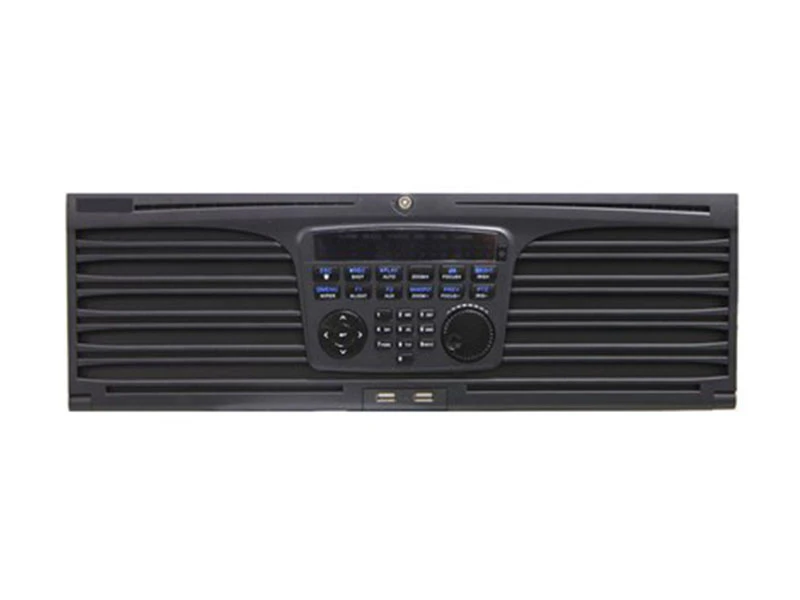

Hikvision DS 9664NI I16 NVR Kayıt Cihazı
Özellikler
- Third-party network cameras supported
- Up to 12 Megapixels resolution recording
- Support 2-ch HDMI, 2-ch VGA, HMDI1 at up to 4K(3840x2160)resolution
- Up to 64 IP cameras can be connected with 320M incoming bandwidth
- Up to 16 SATA interfaces
- Support redundant power supply to improve the system stability
- Support HDD hot swap with RAID0,1,5,6,10 storage scheme configurable
- Support various VCA detection alarm and VCA search
- Support H.265/H.264/MPEG4 video formats
Teknik Özellikler
Video/Audio Input | |
Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
IP video input | 128-ch |
Network | |
Remote connection | 256 |
Incoming bandwidth | 576Mbps |
Outgoing bandwidth | 512Mbps |
Video/Audio Output | |
HDMI Output | 2-ch, resolution: 4K(4096*2160)/60Hz, 4K(3840*2160)/30Hz, 2K(2560*1440)/60HZ, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Audio Output | 1-ch, RCA (2.0Vp-p, 1KΩ) |
VGA Output | 1-ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Decoding | |
Capability | 20-ch@1080P |
Live view / Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Hard Disk | |
eSATA | 1 eSATA interface |
miniSAS (Optional) | 2 miniSAS interface |
Capacity | Up to 8TB capacity for each HDD |
Disk array | |
Array type | RAID0, RAID1, RAID5, RAID6, RAID10 |
Number of array | 12 |
External Interface | |
Optic fiber interface | 4 1000 Mbps optional optic fiber interfaces |
Network Interface | 4 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces |
Serial Interface | RS-232, RS-485, Keyboard |
USB Interface | Front panel: 1 × USB 2.0 |
Rear panel: 2 × USB 3.0 | |
Alarm In | 16-ch |
Alarm Out | 4-ch |
General | |
Power Supply | 100-240 VAC, 550W |
Consumption(without hard disk and POE) | ≤ 140W |
Working Temperature | 0 oC ~ +50 oC (32oF ~ 122oF) |
Working Humidity | 10 % ~ 90 % |
Chassis | 4U chassis |
Dimensions | 447 × 528 × 172mm (17.6 20.8 6.8 inch) |
Weight(without HDD) | ≤ 23 kg (50.7 lb) |
