Açıklama

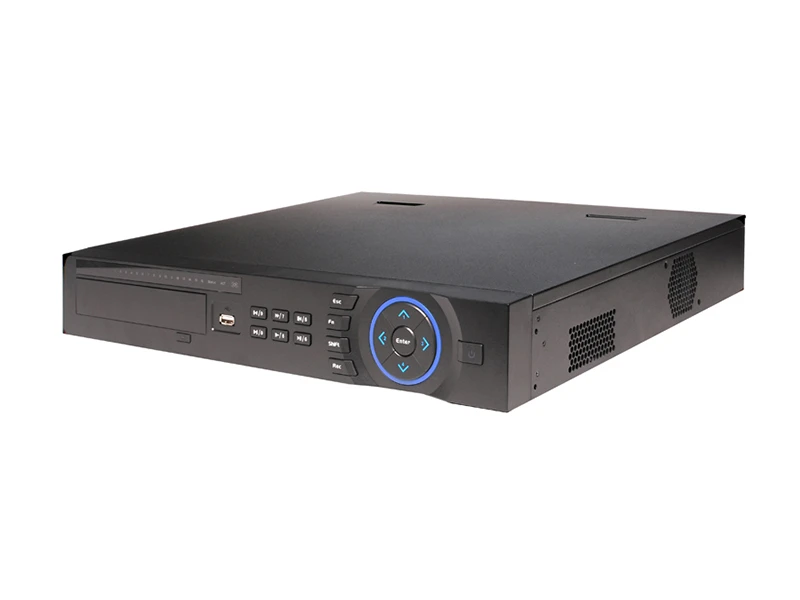

Dahua DH NVR5408 NVR Kayıt Cihazı

Özellikler

Up to 8 channel with 1080P realtime live view
H.264/MJPEG dual codec decoding
Up to 5MP resolution
Max 160Mbps incoming bandwidth
HDMI/VGA simultaneous video output
8/16/16 channel synchronous realtime playback, GRID interface
8/16/32 channel synchronous realtime preview, GRID interface
Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
ONVIF Version 2.0 conformance
3D intelligent positioning with Neutron PTZ camera
Support 4 SATA HDDs up to 16TB, 1 eSATA up to 16TB, 3 USB2.0
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Teknik Özellikler

System
Main Processor	Dual-core embedded processor
Operating System	Embedded LINUX
Video & Audio
IP Camera Input	8 channel
Two-way Talk	1 channel Input, 1 channel Output, BNC
Display
Interface	1 HDMI, 1 VGA, 1TV
Resolution	1920×1080, 1280×1024, 1280×720, 1024×768
Display Split	1/4/8/9
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression	H.264 / MJPEG
Resolution	5MP(2560×1920) / 3MP(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) & etc.
Record Rate	Max 128Mbps ( eg. 16ch 5MP @ 8Mbps, 32ch 1080P @ 4Mbps &; etc.)
Bit Rate	48~ 8192kbps
Record Mode	Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval	1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events	Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips
Video Detection	Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input	8 channel
Relay Output	3 channel
Playback & Backup
Sync Playback
Search Mode	Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode	USB Device / eSATA Device / Internal SATA burner/ Network
Network
Ethernet	2 RJ-45 port (10/100/1000Mbps)
Network Function	HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Storage
Internal HDD	4 SATA ports (4HDDs or 3HDDs+1CD/DVD-RW), up to 16TB
External HDD	1 eSATA port (Max 4 SATA HDDs), up to 16TB
Auxiliary Interface
USB	3 ports (2 Rear), USB2.0
RS232	1 port, For PC communication & Keyboard
RS485	1 port, For PTZ control
General
Power Supply	AC 100V~240V, 50/60 Hz
Power Consumption	40W (without HDD)
Working Environment	-10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimension	1.5U, 440mm×460mm×68mm
(W×D×H)
Weight	5KG (without HDD)
