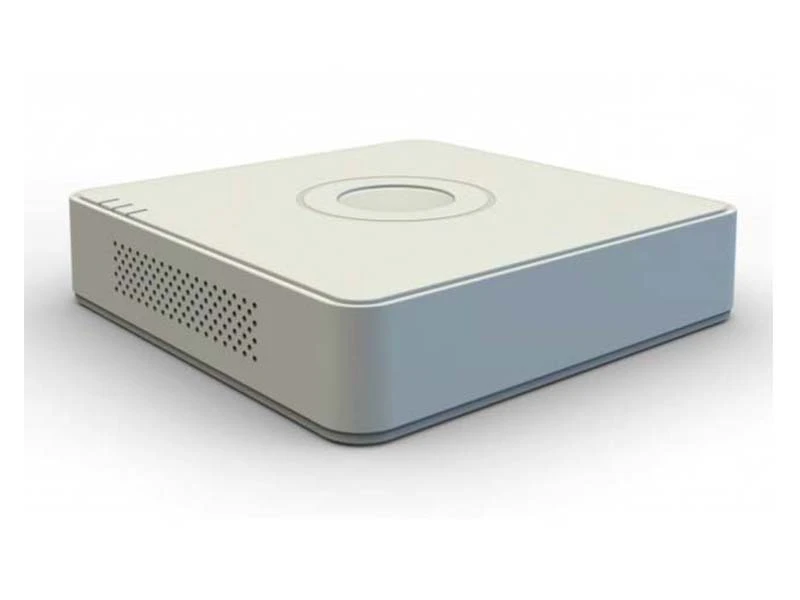

Hikvision DS 7108NI Q1/8P NVR Kayıt Cihazı
Özellikler
- Connectable to the third-party network cameras
- Up to 8 network cameras can be connected
- H.265+/H.265 compression effectively reduces the storage space and costs
- Full channel recording at up to 4 MP resolution
- HDMI/VGA output at 1080p resolution
- 1-ch playback at 4 MP resolution or 2-ch at 1080p resolution
- 1 SATA hard disk can be connected with 6TB capacity
- Supports line crossing and intrusion detection
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency
- Hik-Connect for easy network management
- 100 Mbps Ethernet network interface
- 4/8 independent 100 Mbps built-in switch network interfaces
Teknik Özellikler
Video/Audio Input | |
IP video input | 8-ch |
IP Video input | Up to 4 MP resolution |
Network | |
Incoming bandwidth | 60 Mbps |
Outgoing bandwidth | 60 Mbps |
Video/Audio Output | |
HDMI/VGA output | 1-ch, resolution |
1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz | |
Recording Resolution | 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Synchronous Playback | 8-ch |
VGA Output | 1-ch, resolution 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Decoding | |
Decoding format | H.265+/H.265/ H.264+/H.264 |
Capability | 1-ch @ 4 MP / 2-ch @ 1080p |
Live view / Playback | 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Hard Disk | |
Interface Type | 1 SATA interface |
Capacity | Up to 6TB capacity for each disk |
Capacity | Up to 6TB capacity for each HDD |
External Interface | |
Network Interface | 1 RJ-45 10 / 100 Mbps selfadaptive |
Ethernet interface | |
USB Interface | 2, USB2.0 |
POE | |
Supported Standard | AF and AT |
Interface | 8 independent 10 /100 Mbps PoE Ethernet interfaces |
Max. Power | 75W |
General | |
Power Supply | 48 VDC |
Power | ≤ 90W |
Consumption(without hard disk and POE) | ≤ 10 W |
Working Temperature | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
Working Humidity | 10 % ~ 90 % |
Chassis | 1U chassis |
Dimensions | 285 × 215 × 48 mm (11.2" × 8.5" × 1.9") |
Weight(without HDD) | ≤ 1 kg (2.2 lb) |
Hikvision DS 7108NI Q1/8P NVR Kayıt Cihazı Pdf Dosyası647.87 KB
