Açıklama

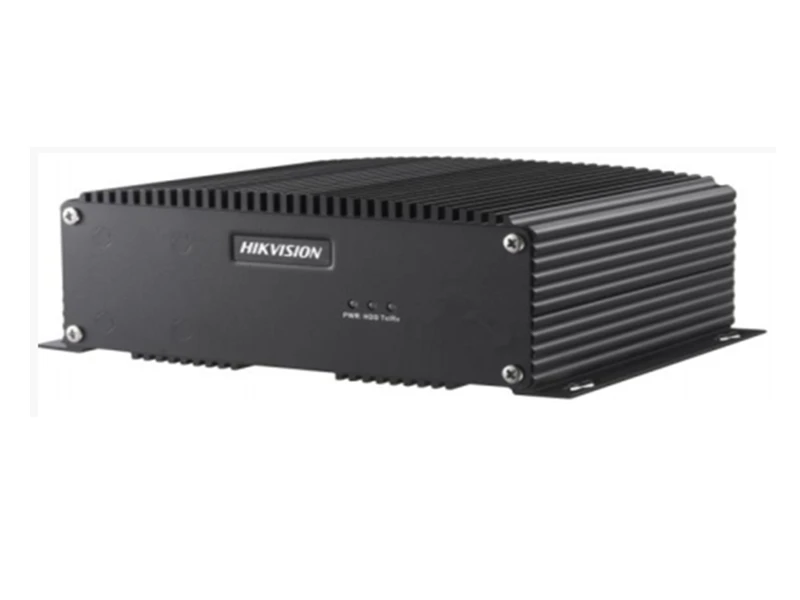

Hikvision DS 7608NI G2/4P NVR Kayıt Cihazı

Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, PSIA, SAMSUNG, SANYO, SONY, Vivotek and ZAVIO.
Support live view, storage, and playback of the connected camera with up to the resolution of 6 megapixels.
Up to 8-ch synchronous playback at 720P resolution.
Support HDD quota mode; different capacity can be assigned to different channel.
Two 2.5-inch HDD/SSD disks can be connected.
1 self-adaptive 10M/100M/1000M network interface and 4 independent PoE network interfaces are provided.

Video / Ses Girişi
İki Yönlü ses girişi	1-ch, RCA (2.0 Vp-p, 1kΩ)
IP Video girişi	8-ch
Network
Incoming bandwidth	80Mbps
Outgoing bandwidth	80Mbps
Uzak Bağlantı	128
Video/Audio Output
HDMI Output	1-ch, resolution: 19201080P/60Hz, 16001200/60Hz, 12801024/60Hz, 1280720/60Hz, 1024*768/60Hz
Recording Resolution	6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Ses Çıkışı	1-ch, RCA (Linear, 1kΩ)
Decoding
Live view / Playback	6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability	8-ch@720P, 6-ch@1080P
Hard Disk
SATA	2 interfaces for 2 HDDs (2.5-inch)
Capacity	HDD Capacity:512GB/1TB
Capacity	SSD Capacity:256GB/512GB/1TB/240GB/480GB/960GB
Harici Arayüzü
Ağ Arayüzü	1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
Seri bağlantı Arayüzü	RS-232; RS-485;
USB Arayüzü	1 × USB 3.0
Alarm iç	4-ch
Alarm dış	2-ch
POE
Max. Power	50W
Arayüzü	4 independent 100 Mbps PoE
Arayüzü	network interfaces
General
Güç Kaynağı	48V DC
Tüketim (hard disk ve POE olmadan)	≤ 10W
Çalışma Sıcaklığı	-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Çalışma Nem oranı	10 % ~ 90 %
Boyutlar	204 × 150 × 65 mm (8 × 5.9 × 2.6 inch)
Ağırlık (HDD hariç)	≤ 1.4 kg (3.1 lb)
