Ürün arama
Açıklama

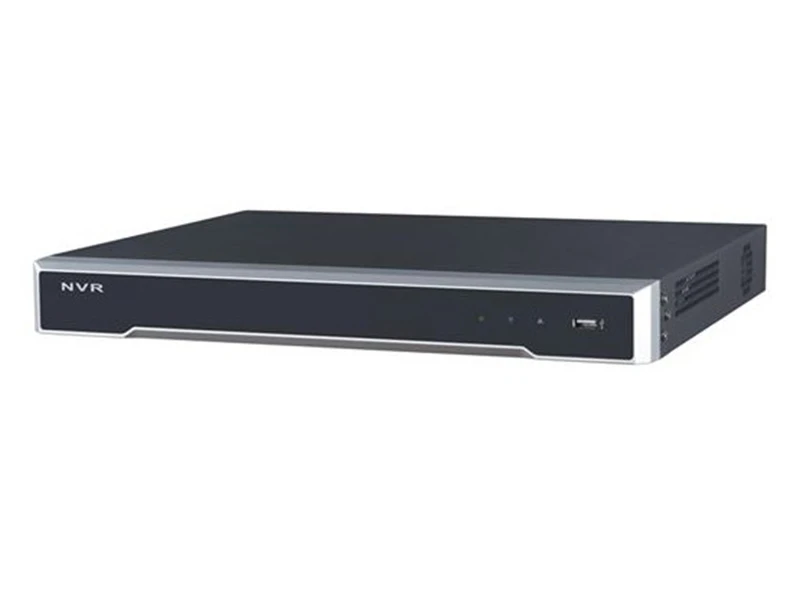

Hikvision DS 7608NI I2/8P NVR Kayıt Cihazı
Özellikler
- Third-party network cameras supported
- Up to 12 Megapixels resolution recording
- Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
- 8/16-ch network cameras can be connected with 80M/160M incoming bandwidth
- Up to 2 SATA interfaces
- Plug & Play with up to 16 independent PoE network interfaces
- Support dual-os to ensure high reliablility of system running
- Support various VCA detection alarm and VCA search
- Support H.265/H.264/MPEG4 video formats
Teknik Özellikler
Video / Ses Girişi | |
İki Yönlü ses girişi | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
IP Video girişi | 8-ch |
Network | |
Incoming bandwidth | 80Mbps |
Outgoing bandwidth | 256Mbps |
Uzak Bağlantı: | 128 |
Video/Audio Output | |
HDMI Output | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Ses Çıkışı | 1-ch, RCA (Linear, 1kΩ) |
Senkronize Yeniden Oynatma | 8-ch |
VGA Çıkışı | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
Decoding | |
Live view / Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Capability | 4-ch@8MP,16-ch@1080P |
Hard Disk | |
SATA | 2 SATA interfaces for 2 HDDs |
Kabiliyeti | Up to 6TB capacity for each HDD |
Harici Arayüzü | |
Ağ Arayüzü | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
Seri bağlantı Arayüzü | RS-232 |
USB Arayüzü | Front panel: 1 × USB 2.0 |
Rear panel: 1 × USB 3.0 | |
Alarm iç | 4-ch |
Alarm dış | 1-ch |
POE | |
Desteklenen Standartlar | AF and AT |
Max. Power | 120W |
Arayüzü | 8 independent 10 /100 Mbps PoE Ethernet interfaces |
General | |
Güç Kaynağı | 100 to 240 VAC, 50 to 60 Hz |
Tüketim (hard disk ve POE olmadan) | ≤15 W |
Çalışma Sıcaklığı | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
Çalışma Nem oranı | 10 % ~ 90 % |
Kasa | 380 chassis |
Boyutlar | 380 × 290 ×45 mm (15.0"× 11.4" × 1.8") |
Ağırlık (HDD hariç) | ≤ 3 Kg (6.6 lb) |
Hikvision DS 7608NI I2/8P NVR Kayıt Cihazı Pdf Dosyası547.26 KB
