Açıklama

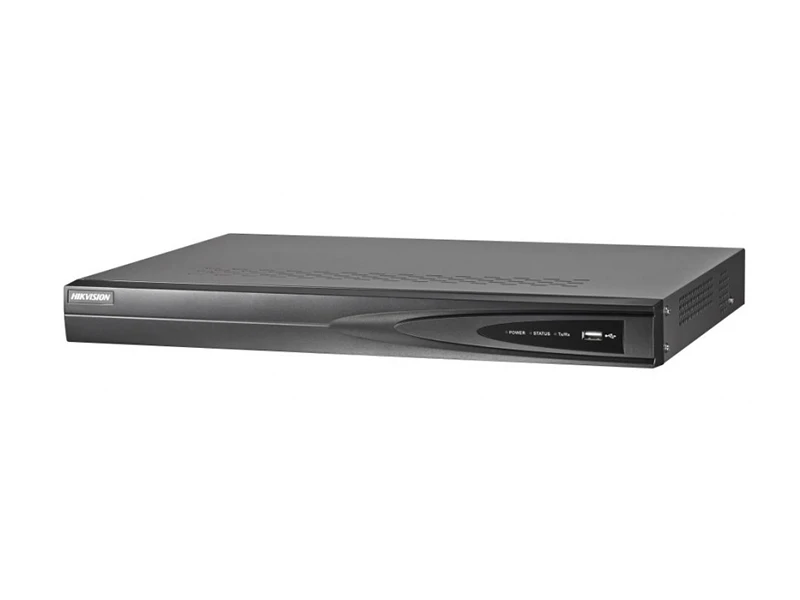

Hikvision DS 7608NI SE/N NVR Kayıt Cihazı

Third-party network cameras supported
Up to 5 Megapixels resolution recording
HDMI and VGA output at up to 1920×1080P resolution
HDD quota and group management
DS-7600NI-SE/N series: support 4/8 independent network interfaces for built-in switch

Video / Ses Girişi
İki Yönlü ses girişi	1-ch, RCA (2.0 Vp-p, 1kΩ)
IP Video girişi	8-ch
Network
Incoming bandwidth	40Mbps
Outgoing bandwidth	40Mbps
Uzak Bağlantı	128
Video/Audio Output
HDMI/VGA output	1-ch, resolution:
	1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,
	1024 × 768 /60Hz
Recording Resolution	5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Ses Çıkışı	1-ch, RCA (Linear, 1kΩ)
Senkronize Yeniden Oynatma	8-ch
Decoding
Live view / Playback	5MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Capability	8-ch@4CIF /4-ch@720P / 2-ch@1080P / 1-ch@5MP
Hard Disk
SATA	2 SATA interfaces for 2 HDDs
Kabiliyeti	Up to 4TB for each disk
Harici Arayüzü
Dahili anahtarı ağ arayüzü	8 independent 10 /100 Mbps Ethernet interfaces
Ağ Arayüzü	1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
Seri bağlantı Arayüzü	1 RS-485 half-duplex interface
USB Arayüzü	2, USB2.0
Alarm iç	4-ch
Alarm dış	1-ch
General
Güç Kaynağı	100~240VAC, 47~63Hz, 3A
Tüketim (hard disk ve POE olmadan)	≤ 15 W (without hard disk)
Çalışma Sıcaklığı	-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Çalışma Nem oranı	10 % ~ 90 %
Kasa	19-inch rack-mounted 1U chassis
Boyutlar	445 × 290 × 45mm
Ağırlık (HDD hariç)	≤ 2 Kg
