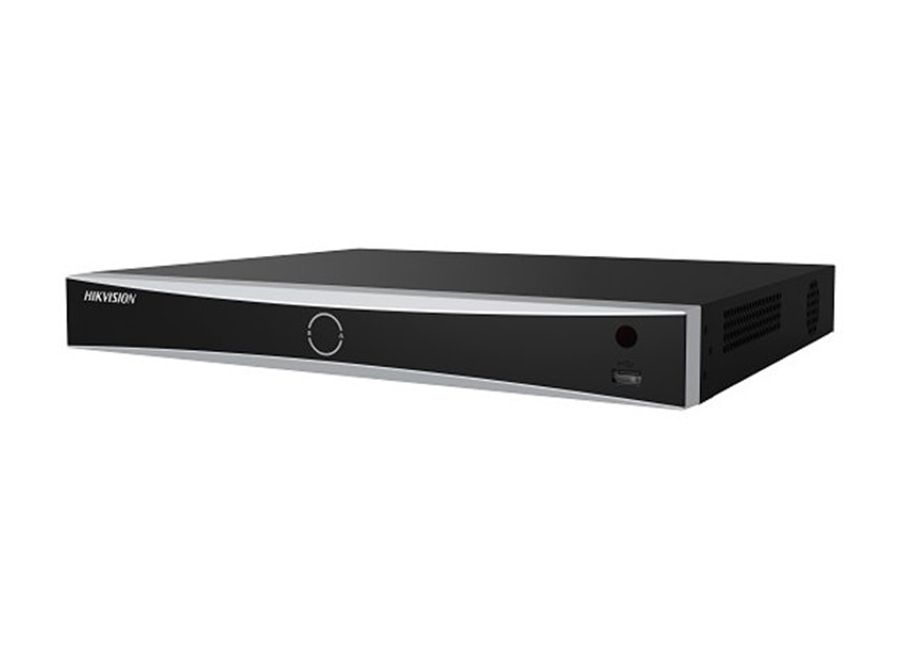

Hikvision DS 7608NXI I2/8P/4S NVR Kayıt Cihazı
Özellikler
- False alarm filtering for up to 4-ch behavior detection
- 256/256 Mbps bit rate input/output(up to 32-ch IP camera input)
- Up to 12MP resolution recoding/live view
- H.265+/H.265/H.264+/H.264 video formats self-adapt
- 12-ch 1080P decoding capability
- 2 SATA interfaces, up to 8 TB for each HDD
- HDMI output at up to 4K resolution
Teknik Özellikler
| Video/Audio Input | |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| IP video input | 8-ch |
| Network | |
| Incoming bandwidth | 80Mbps |
| Outgoing bandwidth | 256Mbps |
| Video/Audio Output | |
| HDMI/VGA output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 ×1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz. 4K resolution is only available for HDMI. |
| CVBS Output | 1-ch, BNC(1.0Vp-p, 75Ω) |
| Resolution 704×576(PAL); 704×480(NTSC) | |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 8-ch |
| Decoding | |
| Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 |
| Capability | 12-ch @ 1080p |
| Hard Disk | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 8TB capacity for each HDD |
| External Interface | |
| Network Interface | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| USB Interface | Front panel 1 × USB 2.0 |
| Rear panel 1 × USB 3.0 | |
| Alarm In | 4-ch |
| Alarm Out | 1-ch |
| POE | |
| Supported Standard | AF and AT |
| Interface | 8 independent 10 /100 Mbps PoE Ethernet interfaces |
| Max. Power | 120W |
| General | |
| Power Supply | 100 to 240 VAC |
| Power | ≤ 180 W |
| Consumption(without hard disk and POE) | ≤ 15 W |
| Working Temperature | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
| Working Humidity | 10 % ~ 90 % |
| Chassis | 1U chassis |
| Dimensions | 380 × 315 × 51.5 mm ( 15.0"× 12.4" × 2.0") |
| Weight(without HDD) | ≤ 3 kg (6.6 lb) |
Hikvision DS 7608NXI I2/8P/4S NVR Kayıt Cihazı Pdf Dosyası740.77 KB
