Açıklama

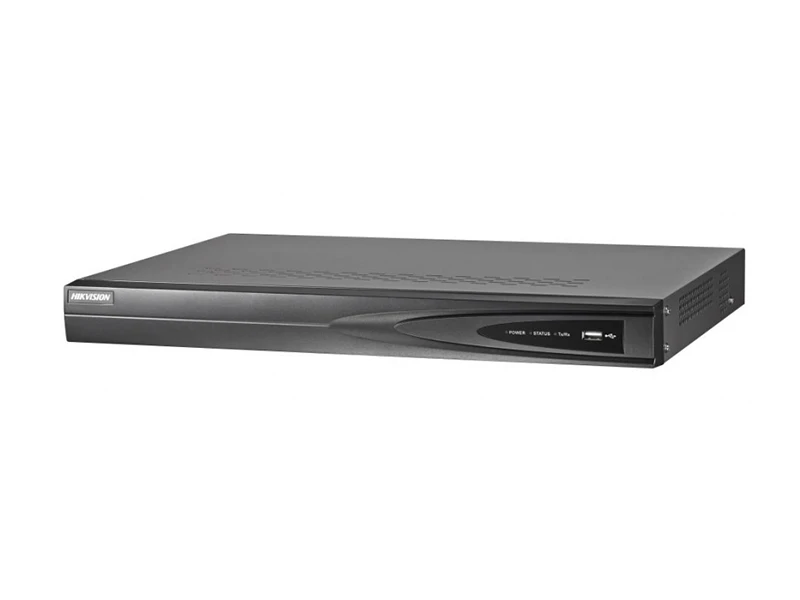

Hikvision DS 7P08NI E1 NVR Kayıt Cihazı
Özellikler
- Third-party network cameras supported
- Up to 6 Megapixels resolution recording
- HDMI and VGA output at up to 1920×1080P resolution
- 4/8/16-ch network cameras can be connected with 40M/80M/160M incoming bandwidth
- Up to 2 SATA interfaces
- Support network detection, including network delay, packet loss, etc.
Teknik Özellikler
Video / Ses Girişi | |
İki Yönlü ses girişi | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
IP Video girişi | 8-ch |
Network | |
Incoming bandwidth | 80Mbps |
Outgoing bandwidth | 80Mbps |
Uzak Bağlantı | 128 |
Video/Audio Output | |
HDMI/VGA output | 1-ch, resolution: |
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, | |
1024 × 768 /60Hz | |
Recording Resolution | 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Çerçeve Hızı | Main stream: 50 fps (P) / 60 fps (N) |
Sub-stream: 50 fps (P) / 60 fps (N) | |
Ses Çıkışı | 1-ch, RCA (Linear, 1kΩ) |
Senkronize Yeniden Oynatma | 8-ch |
Decoding | |
Live view / Playback | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Capability | 5-ch@1080P |
Hard Disk | |
SATA | 1 SATA interface for 1 HDD |
Kabiliyeti | Up to 4TB for each disk |
Harici Arayüzü | |
Ağ Arayüzü | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
USB Arayüzü | 1 × USB 2.0 and 1 × USB 3.0 |
Alarm iç | 4-ch(optional) |
Alarm dış | 1-ch(optional) |
General | |
Güç Kaynağı | 12V DC |
Tüketim (hard disk ve POE olmadan) | ≤ 10W |
Çalışma Sıcaklığı | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
Çalışma Nem oranı | 10 % ~ 90 % |
Kasa | 1U chassis |
Boyutlar | 315 × 230 × 45 mm (12.4 × 9.0 × 1.8 inch) |
Ağırlık (HDD hariç) | ≤ 1 kg |
Hikvision DS 7P08NI E1 NVR Kayıt Cihazı Pdf Dosyası750.08 KB
