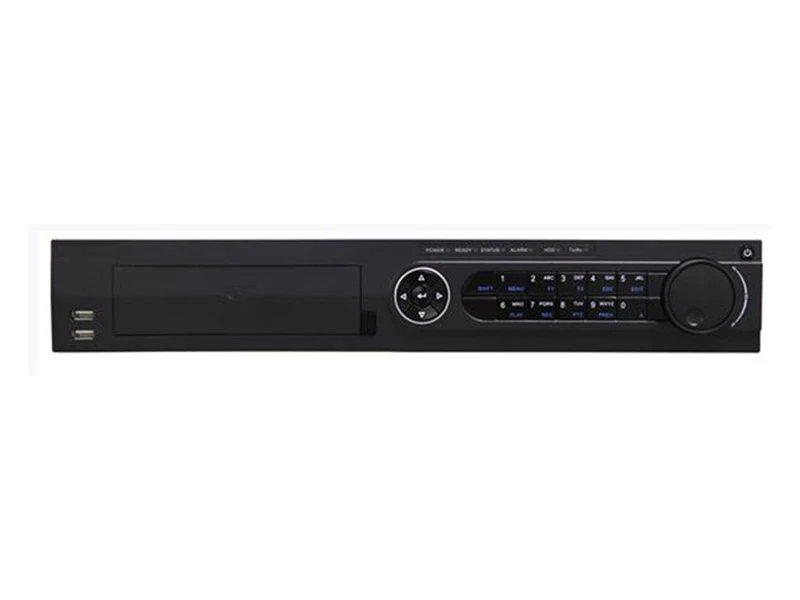

Hikvision DS 7P08NI E4/8P NVR Kayıt Cihazı

Third-party network cameras supported
Up to 6 Megapixels resolution recording
HDMI and VGA output at up to 1920×1080P resolution
8/16/32-ch network cameras can be connected with 80M/160M/160M incoming bandwidth
Up to 4 SATA interfaces
Plug & Play with up to 16 independent PoE network interfaces
Support network detection, including network delay, packet loss, etc

Video / Ses Girişi
İki Yönlü ses girişi	1-ch, RCA (2.0 Vp-p, 1kΩ)
IP Video girişi	8-ch
Network
Incoming bandwidth	80Mbps
Outgoing bandwidth	80Mbps
Uzak Bağlantı	128
Video/Audio Output
HDMI/VGA output	1-ch, resolution:
	1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,
	1024 × 768 /60Hz
Recording Resolution	6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Çerçeve Hızı	Main stream: 50 fps (P) / 60 fps (N)
Çerçeve Hızı	Sub-stream: 50 fps (P) / 60 fps (N)
Ses Çıkışı	1-ch, RCA (Linear, 1kΩ)
Senkronize Yeniden Oynatma	16-ch
Decoding
Live view / Playback	6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability	8-ch@720P, 6-ch@1080P
Hard Disk
SATA	4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs
Kabiliyeti	Up to 6TB capacity for each HDD
Harici Arayüzü
Ağ Arayüzü	1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Arayüzü	Front panel: 2 × USB 2.0
USB Arayüzü	Rear panel: 1 × USB 3.0
Alarm iç	16-ch
Alarm dış	4-ch
POE
Desteklenen Standartlar	AF and AT
Max. Power	200W
Arayüzü	8 independent 10 /100 Mbps PoE Ethernet interfaces
General
Güç Kaynağı	100~240VAC
Tüketim (hard disk ve POE olmadan)	≤ 20W
Çalışma Sıcaklığı	-10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Çalışma Nem oranı	10 % ~ 90 %
Kasa	19-inch rack-mounted 1.5U chassis
Boyutlar	445 × 390 × 70mm (17.5 ×15.3 × 2.8 inch)
Ağırlık (HDD hariç)	≤ 4 Kg (8.82 lb)
