Açıklama

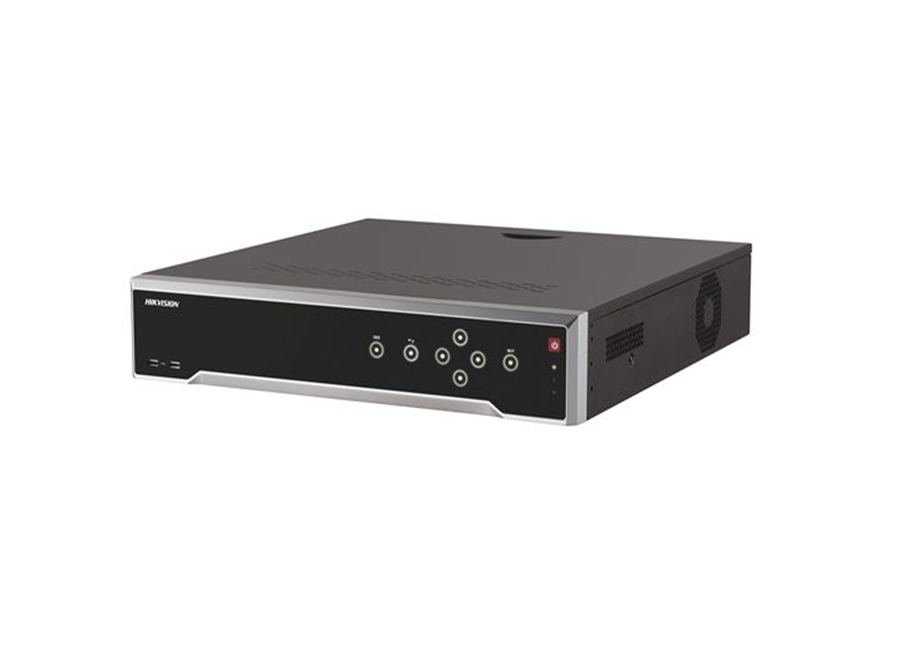

Hikvision DS 8608NI I8 NVR Kayıt Cihazı
Özellikler
- New logical and visualized GUI design
- Dual-OS design to ensure high reliability of system running
- ANR technology to enhance the storage reliability when the network is disconnected
- HDD hot swap with RAID0, RAID1, RAID5, RAID6 and RAID10 storage scheme configurable
- Up to 64-ch 12 MP IP cameras can be connected
- Connectable to the third-party network cameras
- H.265+ compression effectively reduces the storage space by up to 75%
- Full channel recording at up to 12MP resolution
Teknik Özellikler
| Video/Audio input |
| IP video input : 8-ch Up to 12 MP resolution |
| Two-way audio : 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Network |
| Incoming bandwidth : 128 Mbps |
| Outgoing bandwidth : 256 Mbps, or 200 Mbps (when RAID is enabled) |
| Remote connection : 128 |
| Video/ Audio output |
| Recording resolution : 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF |
| CVBS output (Optional) : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| VGA1 /HDMI1 output resolution : HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × |
| VGA2 /HDMI2 output resolution : 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio output : 2-ch, RCA (2.0Vp-p, 1 KΩ) |
| Decoding |
| Decoding format : H.265+/H.265/H.264/H.264+/MPEG4 |
| Live view/Playback resolution : 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF |
| Synchronous playback : 8-ch |
| Capability : 2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps) |
| Network management |
| Network protocols : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Hard disk |
| SATA : 8 SATA interfaces for 8HDDs |
| eSATA : 1 eSATA interface |
| Capacity : Up to 10TB capacity for each HDD |
| Disk array |
| Array type : RAID0, RAID1, RAID5, RAID6, RAID10 |
| Number of arrays : 4 |
| External interface |
| Network interface : 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Serial interface : RS-232; RS-485; Keyboard |
| USB interface : Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm in/out : 16/4 |
| General |
| Power supply : 100 to 240 VAC, 50 to 60 Hz |
| Max. Power : 200 W |
| Consumption (without HDD) : ≤ 30 W |
| Working temperature : -10 to +55 ºC (+14 to +131º F) |
| Working humidity :10% to 90% |
| Chassis : 19-inch rack-mounted 2U chassis |
| Dimensions(W × D × H) : 445 × 470 ×90 mm (17.5"× 18.5" × 3.5") |
| Weight (without HDD) : ≤ 8 kg (17.6 lb) |
Hikvision DS 8608NI I8 NVR Kayıt Cihazı Pdf Dosyası623.7 KB
